Repair Procedures: Inspection

  1. Disconnect the IMS control switch connector.

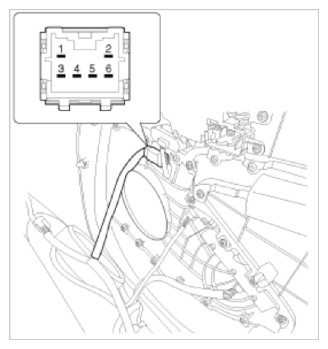

    Fig 1: IMS Control Switch Connector View
    G09744288Courtesy of KIA MOTORS AMERICA, INC.
  2. With the power IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the IMS control switch.
    Fig 2: Continuity Reference Chart
    G09744289Courtesy of KIA MOTORS AMERICA, INC.
