Home >> Kia >> 2015 >> Forte LX, Automatic Trans >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Cooling Fan >> Engine Cooling System - 1.8L >> Water Temperature Control Assembly >> Components And Components Location >> Components

Components And Components Location: Components

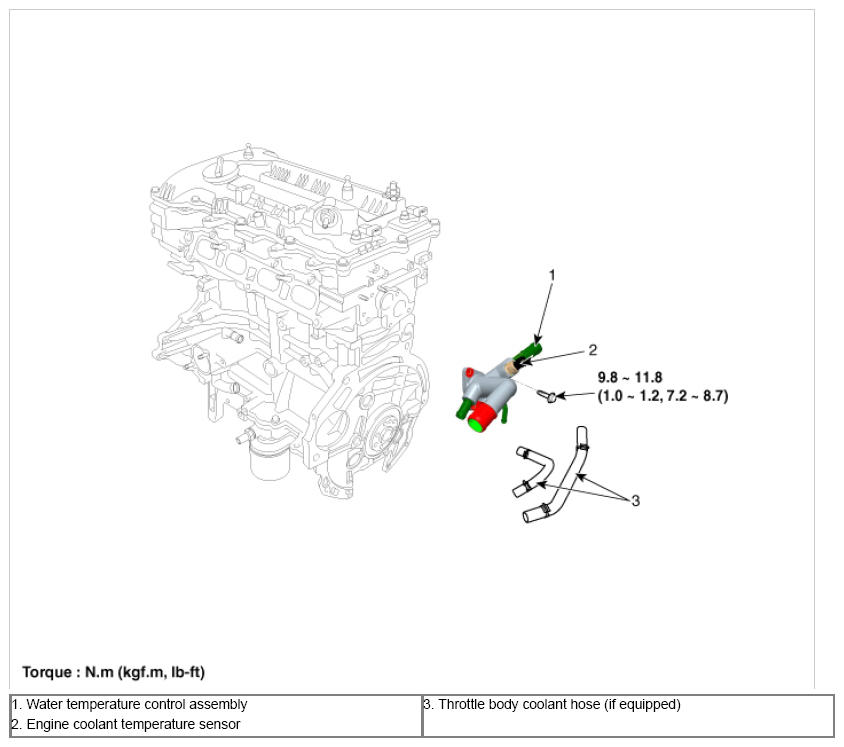

Fig 1: Water Temperature Control Assembly Components With Torque Specification

G09745415

Courtesy of KIA MOTORS AMERICA, INC.
