Home >> Kia >> 2015 >> Forte Koup EX, Automatic Trans >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> TJ Joint >> Components And Components Location >> Components >> [LH]

Components And Components Location: Components: [LH]

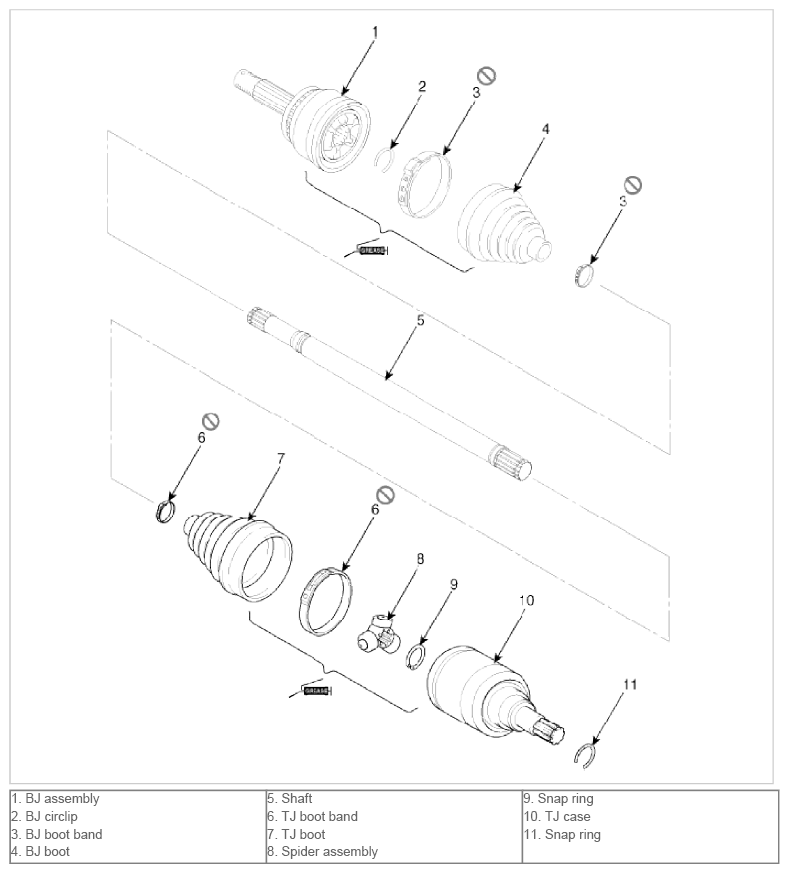

Fig 1: Driveshaft And Axle Components (LH)

G09743438

Courtesy of KIA MOTORS AMERICA, INC.
