Repair Procedures: Replacement

NOTE:

If a DTC occurs in the ECU, check the connectors and wiring. If no problem is found, replace the ECU.
Before replacing the MDPS ECU, use the diagnostic device to read the settings of the old ECU.

Perform the "ECU data backup" by GDS following in the order below.
1. Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.
2. Turn the self - diagnosis device after key is ON.
3. After Selecting the "vehicle model" and "EPS system" on GDS vehicle selection screen.
4. Select the "Part exchange (Power steering ECU)"

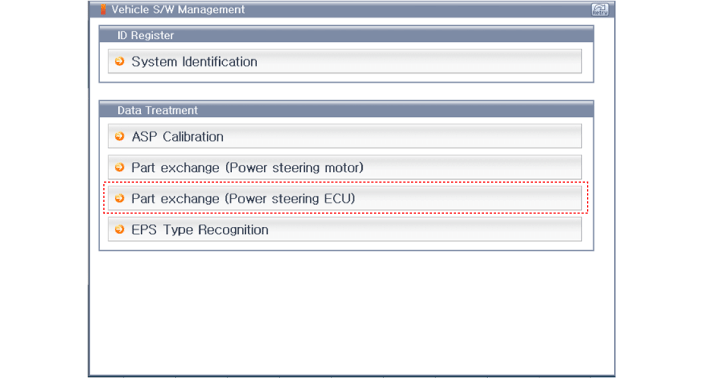

  Fig 1: Screen Display - Selecting Part Exchange (Power Steering ECU)
  Courtesy of KIA MOTORS AMERICA, INC.
5. Follow the instructions shown on the screen.

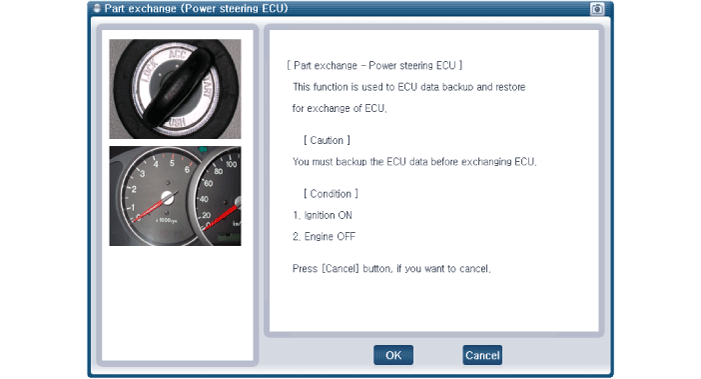

  Fig 2: Screen Display - Function
  Courtesy of KIA MOTORS AMERICA, INC.

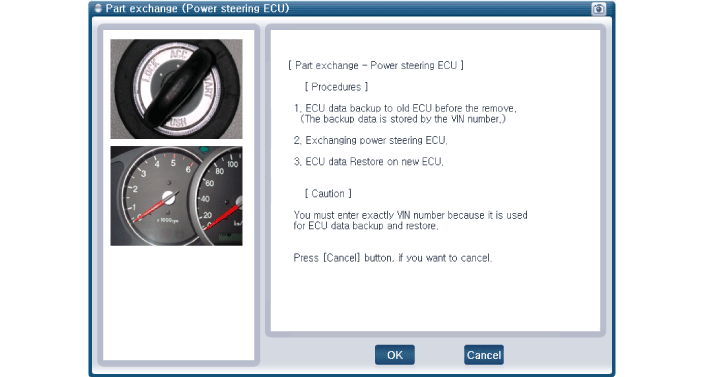

  Fig 3: Screen Display - Procedures
  Courtesy of KIA MOTORS AMERICA, INC.
6. Insert the VIN number and then select the "Read" in order to the ECU information save.

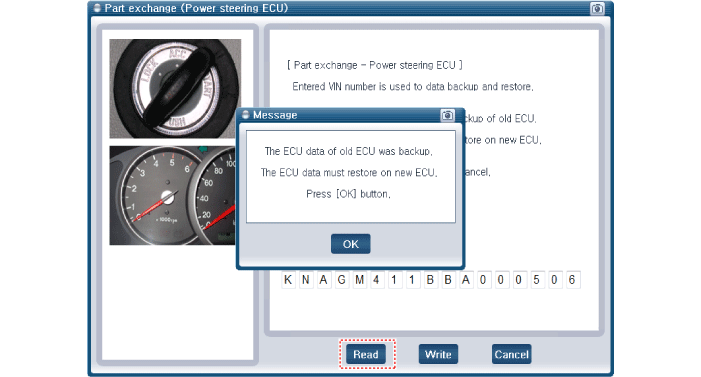

  Fig 4: Screen Display - Entering VIN
  Courtesy of KIA MOTORS AMERICA, INC.

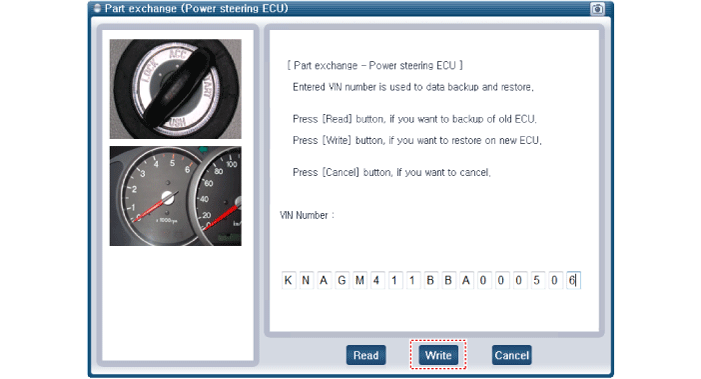

  Fig 5: Screen Display - ECU Data Restore
  Courtesy of KIA MOTORS AMERICA, INC.

  NOTE: If a DTC occurs in the ECU, check the connectors and wiring. If no problem is found, replace the ECU.
Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
Remove the crash pad lower panel.
(Refer to "REPAIR PROCEDURES ")
Disconnect the MDPS ECU connectors (A).

Fig 6: MDPS ECU Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolts (A) and then remove the MDPS ECU (B).
Tightening Torque:

19.6 ~ 23.5 N.m (2.0 ~ 2.4 kgf.m, 14.5 ~ 17.3 lb-ft)

Fig 7: Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the star wrench (A) and then remove the MDPS ECU bracket (B).
Tightening Torque:

7.8 ~9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)

Fig 8: MDPS ECU Bracket & Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Perform the "ECU data restore" by GDS following in the order below.
1. Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.
2. Turn the self - diagnosis device after key is ON.
3. After Selecting the "vehicle model" and "EPS system" on GDS vehicle selection screen.
4. Select the "Part exchange (Power steering ECU)"

  Fig 9: Screen Display - Selecting Power Exchange (Power Steering ECU)
  Courtesy of KIA MOTORS AMERICA, INC.
5. Follow the instructions shown on the screen.

  Fig 10: Screen Display - Function
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 11: Screen Display - ECU Data Restore
  Courtesy of KIA MOTORS AMERICA, INC.
6. Insert the VIN number and then select the "Write" in order to the ECU information save.

  Fig 12: Screen Display - Entering VIN
  Courtesy of KIA MOTORS AMERICA, INC.
Conduct the "ASP Calibration" by GDS.
(Refer to "DIAGNOSIS WITH GDS ")
Turn off the IGN switch and wait for 10 seconds or more. Then check the operation after starting the engine.
