Repair Procedures: Removal

Remove the fuel pump (Refer to "FUEL PUMP ").
Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

Fig 1: Electric Pump Wiring And Fuel Sender Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the head assembly (A) after releasing the cushion fixing clip (B).

Fig 2: Cushion Fixing Clip And Head Assembly
Courtesy of KIA MOTORS AMERICA, INC.

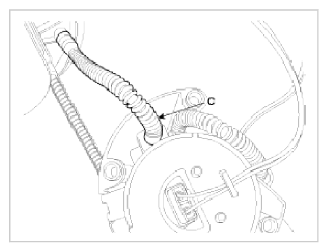

Disconnect the fuel tube quick-connectors (C).

Fig 3: Fuel Tube Quick-Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel sender (A) in the direction of an arrow.

Fig 4: Removing Fuel Sender
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel tube connector (A).

Fig 5: Fuel Tube Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cut valve (A) after releasing hooks (B).

Fig 6: Cut Valve And Hooks
Courtesy of KIA MOTORS AMERICA, INC.

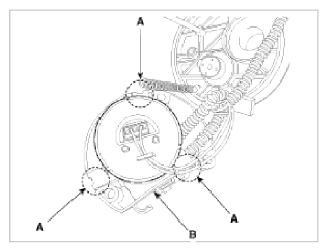

Remove the reservoir-cup (B) after releasing the fixing hooks (A).

Fig 7: Reservoir-Cup And Fixing Hooks
Courtesy of KIA MOTORS AMERICA, INC.

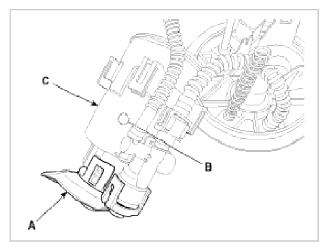

Release the fixing hooks, and then remove the pre-filter (A).
Remove the electric motor pump motor (B) from the fuel filter (C) by pulling it in down direction.

Fig 8: Pre-Filter, Electric Motor Pump Motor And Fuel Filter
