Repair Procedures: Removal

  1. Disconnect the battery terminals (A).

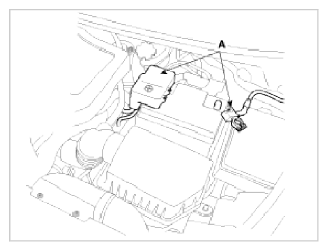

    Fig 1: Battery Terminals
    G09742818Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the air duct and air cleaner assembly.

    (Refer to "AIR CLEANER ")

  3. Remove the battery insulation pad.
  4. Remove the battery (A) after removing the mounting bracket.

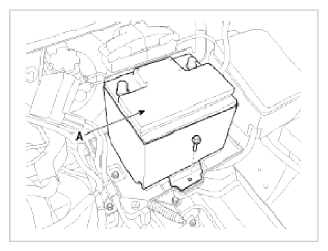

    Fig 2: Battery
    G09742819Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the ECM.

    (Refer to "ENGINE CONTROL MODULE (ECM) ")

  6. Remove the battery tray (A) after removing the bolts.

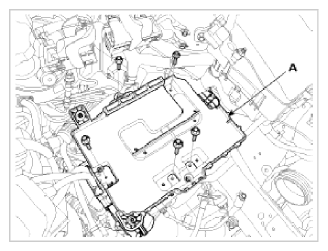

    Fig 3: Battery Tray
    G09742820Courtesy of KIA MOTORS AMERICA, INC.
