G-Sensor Calibration

  1. Ignition "OFF", connect GDS.
  2. Ignition "ON" & Engine "OFF" select vehicle name and ESC system.
  3. Perform G-sensor calibration using GDS.

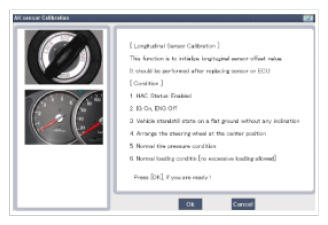

    Fig 1: Display - G-Sensor Calibration Screen
    G09744518Courtesy of KIA MOTORS AMERICA, INC.
