Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")
Remove the front seat shield outer cover.
(Refer to "FRONT SEAT SHIELD OUTER COVER ")
Remove the front seat shield inner cover.
(Refer to "FRONT SEAT SHIELD INNER COVER ")

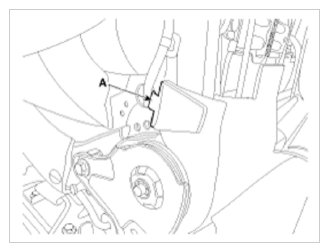

Remove the front seat lower protector (A).

Fig 1: Front Seat Lower Protector
Courtesy of KIA MOTORS AMERICA, INC.

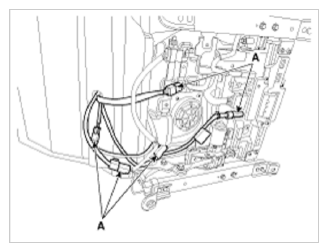

Disconnect the connectors (A).

Fig 2: Front Seat Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Push the lock pin (B), remove the front seat headrest (A).

Fig 3: Removing Front Seat Headrest
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front seat folding lever cover.
(2 Door Type Only)
1. Remove the front seat folding lever (A).

  Fig 4: Front Seat Folding Lever
  Courtesy of KIA MOTORS AMERICA, INC.
2. Using a screwdriver or remover, remove the front seat folding lever cover (A).

  Fig 5: Front Seat Folding Lever Cover
  Courtesy of KIA MOTORS AMERICA, INC.

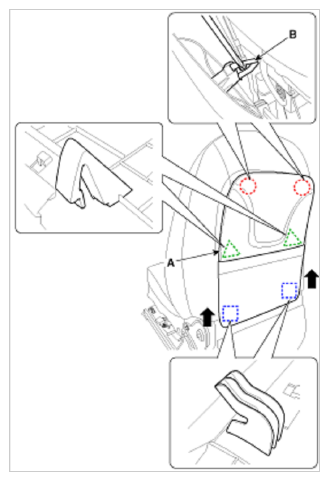

Push the clips (B) from the front seat back board (A).
Information
- Push the middle area of clip using the flat head screwdriver.
- Be careful not to damage the clip.

  Fig 6: Pushing Front Seat Back Board Clip
  Courtesy of KIA MOTORS AMERICA, INC.

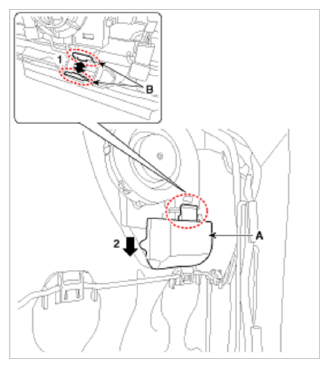

To remove the air ventilation seat back duct (A), widen the both sides of the clips (B) as the direction of the arrow and then pull down the air ventilation seat back duct.

Fig 7: Removing Air Ventilation Seat Back Duct
Courtesy of KIA MOTORS AMERICA, INC.

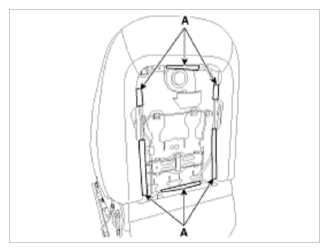

Pull out the protector (A) by the front seat back frame.

Fig 8: Front Seat Back Frame Protector
Courtesy of KIA MOTORS AMERICA, INC.

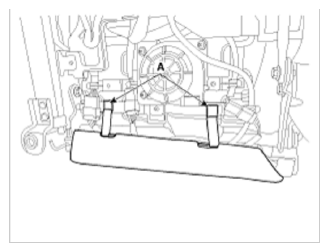

Pull out the front seat lower protector (A).

Fig 9: Front Seat Lower Protector
Courtesy of KIA MOTORS AMERICA, INC.

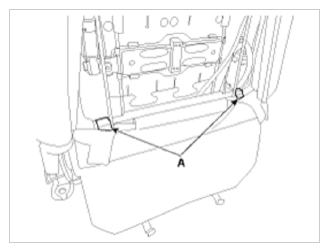

Remove the front seat side protector (A).

Fig 10: Front Seat Side Protector
Courtesy of KIA MOTORS AMERICA, INC.

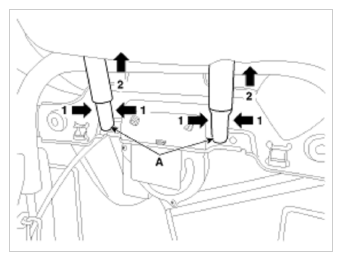

Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both side of the lower part of the guides, and remove them.

Fig 11: Pulling Out Headrest Guides
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front seat back cover (A) from the front seat back frame.

Fig 12: Front Seat Back Cover
Courtesy of KIA MOTORS AMERICA, INC.
After removing the hog-ring clips (A) on the front of seat back and remove the front seat back cover (B).

Fig 13: Front Seat Back Cover And Hog Ring Clips
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

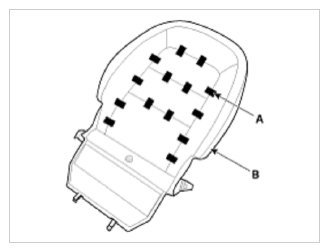

  Fig 14: Replacing Hog-Ring Clips Using Tool
  Courtesy of KIA MOTORS AMERICA, INC.
