Exterior Bumper Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper cover.

    (Refer to "REAR BUMPER COVER ")

  3. Disconnect the connector, then remove the rear bumper antenna (A) with loosening 2 screws.

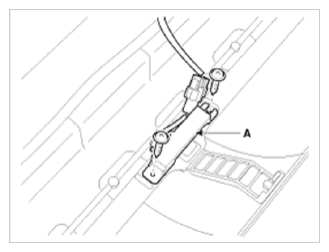

    Fig 1: Rear Bumper Antenna
    G09744831Courtesy of KIA MOTORS AMERICA, INC.
