Smart Key Control Module Connector End View (M13-B)
Smart Key Control Module Connector End View (M13-B)

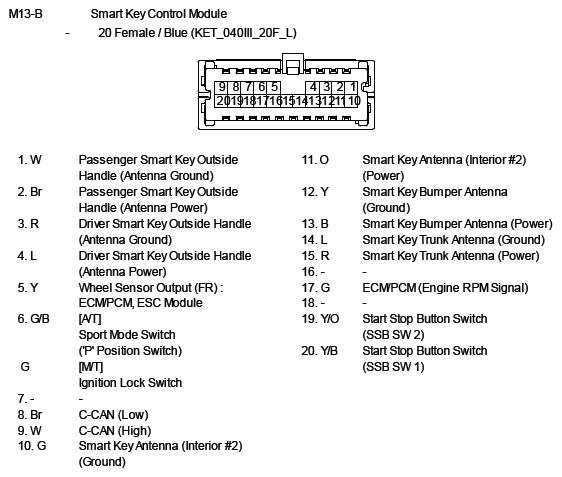

Fig 1: Smart Key Control Module Connector End View (M13-B)
