A/C Control Module (Manual) Connector End View (M22-B)
A/C Control Module (Manual) Connector End View (M22-B)

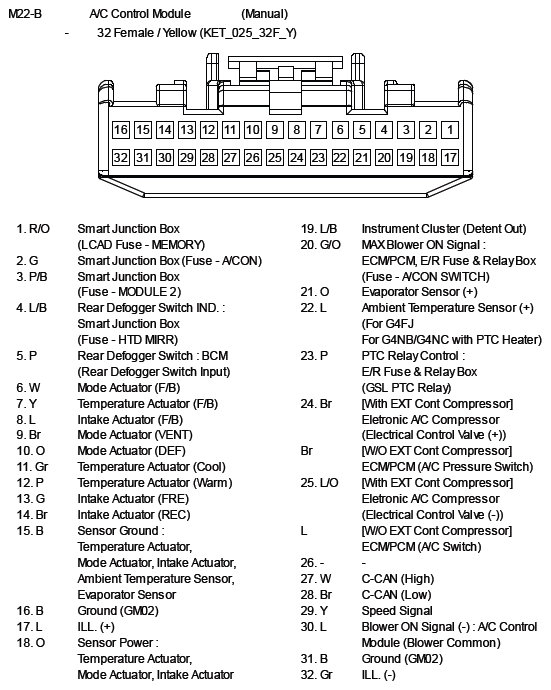

Fig 1: A/C Control Module (Manual) Connector End View (M22-B)
