Engine Control System Diagnosis (2 Of 2) - 2.0L
>>
DTC P2251: O2 Sensor Reference Ground Circuit/Open (Bank 1 Sensor 1)
>>
Component Location
Component Location

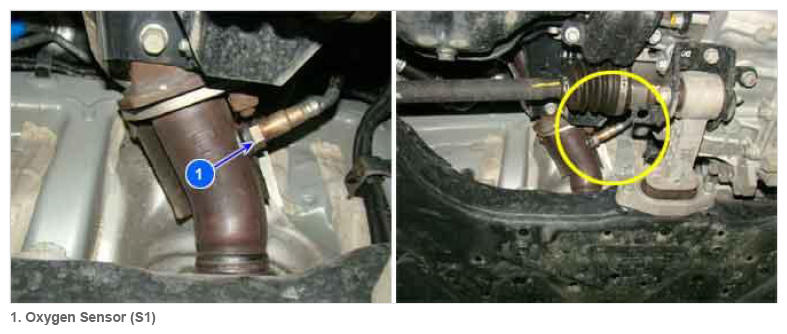

Fig 1: Oxygen Sensor (S1) Location
Courtesy of KIA MOTORS AMERICA, INC.
