Signal Waveform & Data

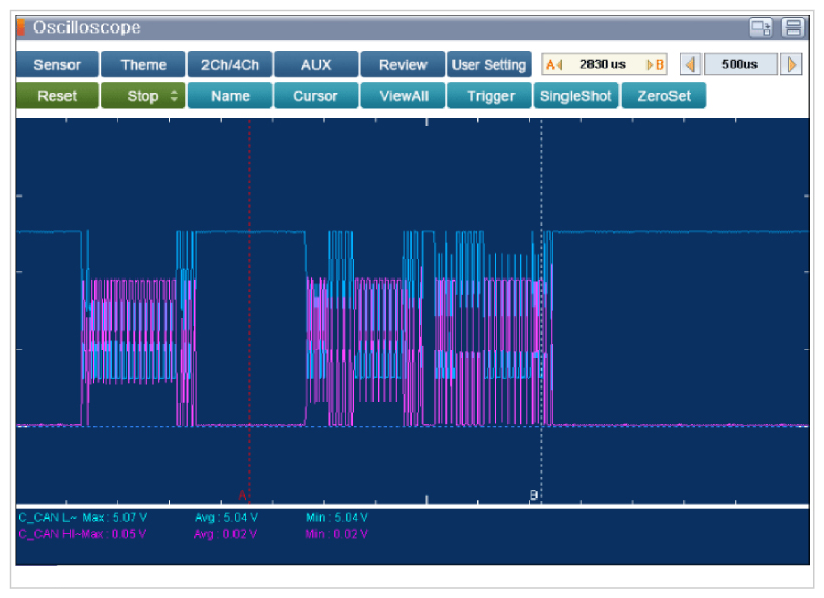

Fig 1: C-CAN Low & High Signal Waveform

G09745863

Courtesy of KIA MOTORS AMERICA, INC.

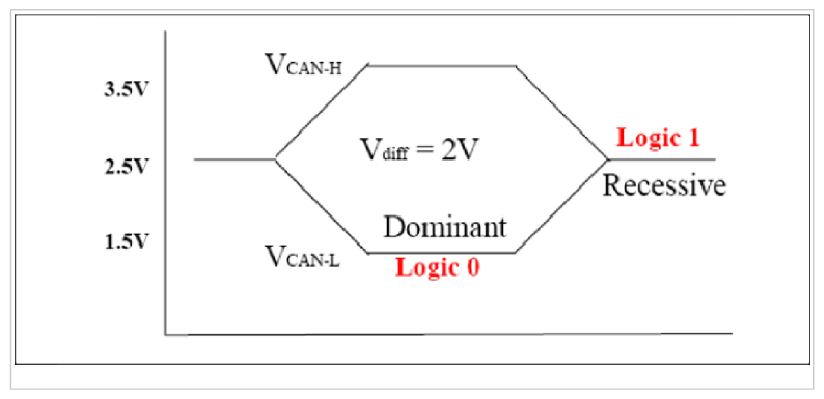

Fig 2: C-CAN BUS Voltage Level Graph (High Speed CAN)

G09745864

Courtesy of KIA MOTORS AMERICA, INC.
