Home >> Kia >> 2015 >> Forte EX >> Repair and Diagnosis (Single Page) >> Electrical >> Gauges >> Cluster Module Diagnosis >> DTC B1003-55: ABS Present Error - Coding Code Error >> Specification >> Signal Waveform & Data

Signal Waveform & Data

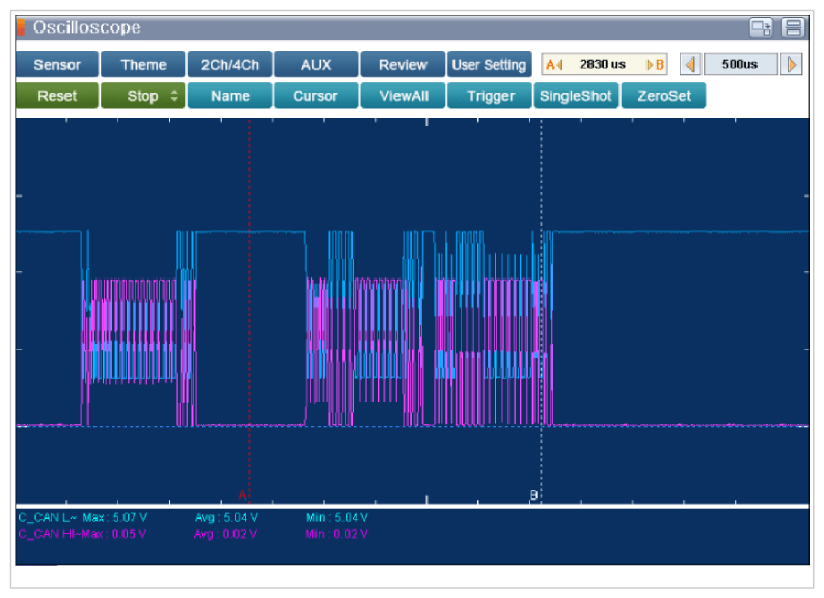

Fig 1: C-CAN Low & High Signal Waveform

G09745855

Courtesy of KIA MOTORS AMERICA, INC.

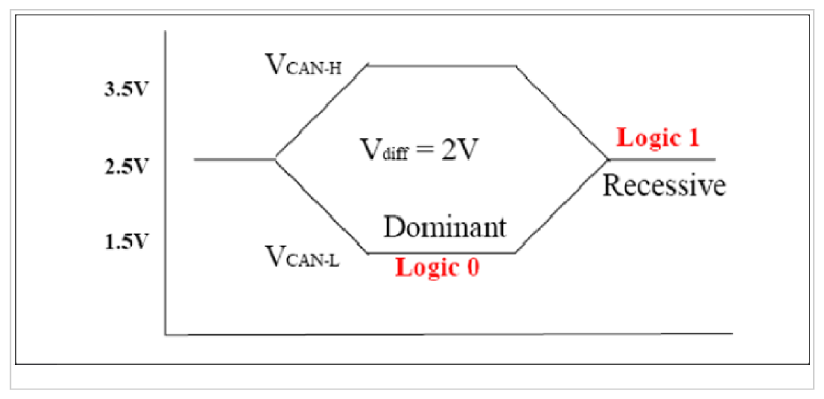

Fig 2: C-CAN BUS Voltage Level Graph (High Speed CAN)

G09745856

Courtesy of KIA MOTORS AMERICA, INC.
