Home >> Kia >> 2015 >> Forte EX >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> ESC Control Module >> Components And Components Location >> Components

Components And Components Location: Components

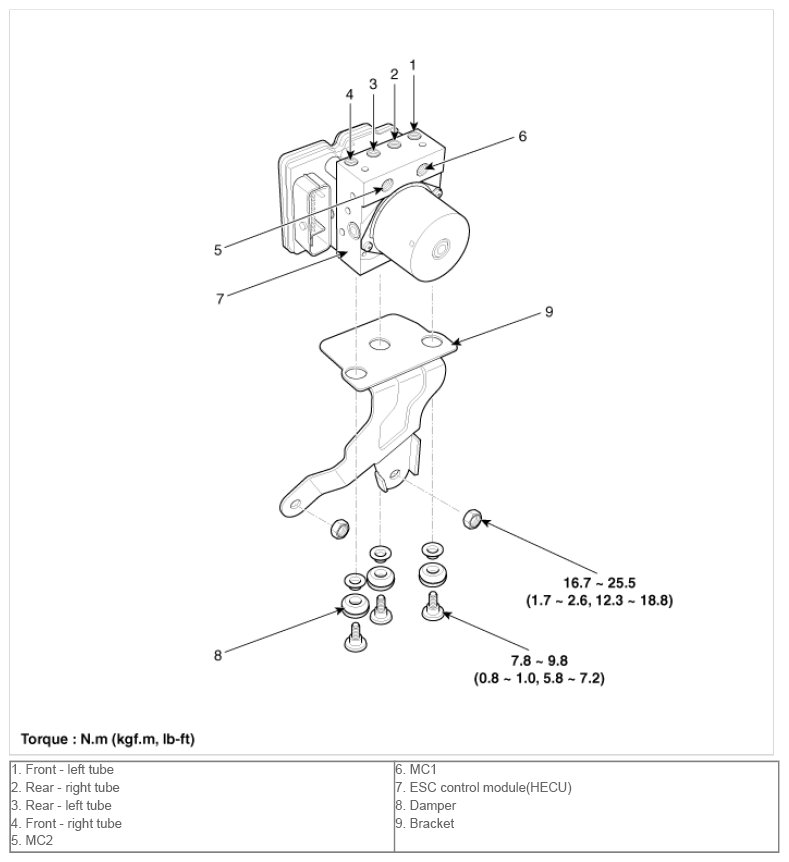

Fig 1: ESC Control Module Components With Torque Specifications

G09744506

Courtesy of KIA MOTORS AMERICA, INC.
