Repair Procedures: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the driver seat in the car.

    (Refer to "FRONT SEAT ASSEMBLY ")

  3. Remove the IMS module (A) after loosen the screws.
  4. Disconnect the connectors (B) from the IMS module.

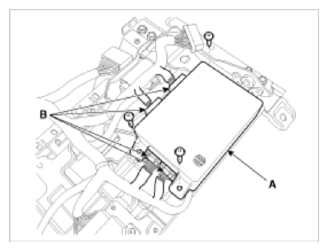

    Fig 1: IMS Module And Connectors
    G09744286Courtesy of KIA MOTORS AMERICA, INC.
