Repair Procedures: Removal

  1. Remove the radiator grill upper guide.

    (Refer to "FRONT BUMPER ")

  2. Remove the mounting nut and disconnect the horn connector, then remove the high pitch horn (A) and low pitch horn (B).

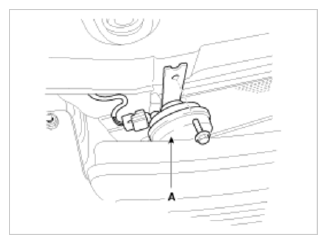

    Fig 1: Identifying High Pitch Horn
    G09752488Courtesy of KIA MOTORS AMERICA, INC.

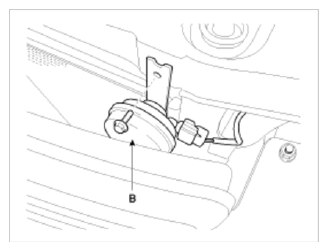

    Fig 2: Identifying Low Pitch Horn
    G09752489Courtesy of KIA MOTORS AMERICA, INC.
