Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim panel.

    (Refer to "REAR DOOR ")

  3. Disconnect the connector from the power window switch module.

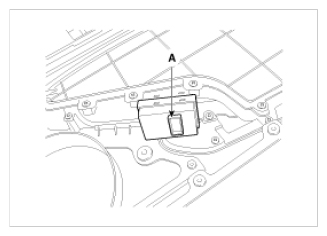

    Fig 1: Identifying Connector From Power Window Switch Module
    G09799615Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the power window switch module (A) from the door trim after loosening the mounting screws (13EA).

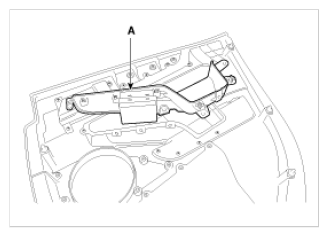

    Fig 2: Identifying Power Window Switch Module From Door Trim
    G09799616Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the module (A) from the sub box assembly.
