Passenger Power Window Switch

Disconnect the negative (-) battery terminal.
Remove the rear door trim panel.
(Refer to "REAR DOOR ")
Disconnect the connector from the power window switch module.

Fig 1: Identifying Connector From Power Window Switch Module
Courtesy of KIA MOTORS AMERICA, INC.
Remove the power window switch module (A) from the door trim after loosening the mounting screws (13EA).

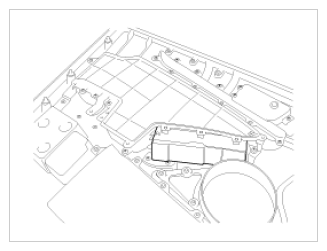

Fig 2: Identifying Power Window Switch Module From Door Trim
Courtesy of KIA MOTORS AMERICA, INC.
Remove the module (A) from the sub box assembly after loosening the mounting screw (3EA).

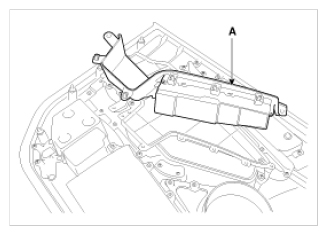

Fig 3: Identifying Module From Sub Box Assembly
Courtesy of KIA MOTORS AMERICA, INC.
