Assist Power Window Switch

When checking the assist power window switch, select a vehicle type and "IPM" menu.
Select "ADM (Assist Door Module)".
Select option "Input/Output monitoring".

Fig 1: Selecting Assist Door Module
Courtesy of KIA MOTORS AMERICA, INC.
To check the input value of power window switch in force mode, select option "ACTUATION TEST".

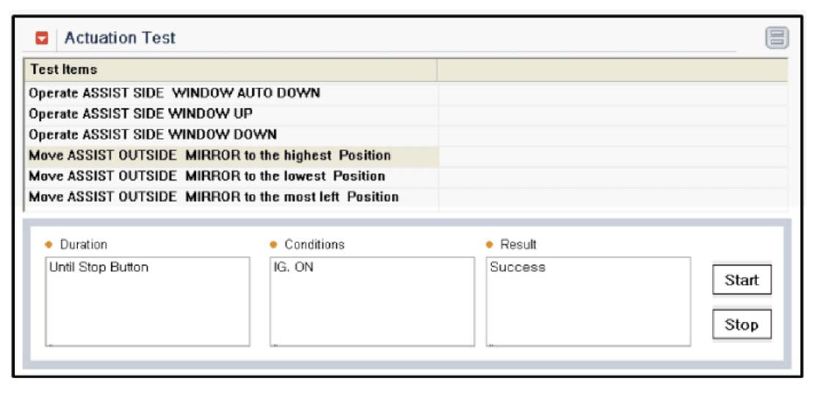

Fig 2: Selecting Option Actuation Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
