Front Power Window Motor Inspection

Remove the front door trim panel.
(Refer to "FRONT DOOR ")
Disconnect the connector from the motor.

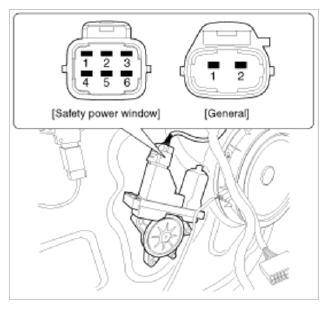

Fig 1: Identifying Connector From Motor
Courtesy of KIA MOTORS AMERICA, INC.
Connect the terminal No. 1 and No. 2 to battery voltage (12V) and terminal No. 6 to battery (-). And then check that the motor operates smoothly when connecting the terminals below.
If the operation is abnormal, replace the motor.

[Safety Power Window]

Fig 2: Safety Power Window Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
[General]

Fig 3: General Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
