Smart Key Control Module Connector End View (M06-C)
Smart Key Control Module Connector End View (M06-C)

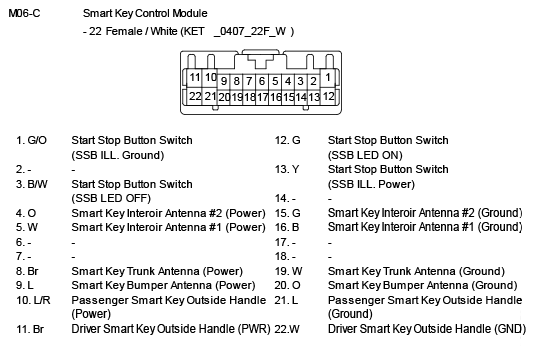

Fig 1: Smart Key Control Module Connector End View (M06-C)
