Repair Procedures: Replacement

NOTE: When a DTC related to MDPS motor occurs, check the connectors and wiring. If no problem is found, replace the motor.

Be sure to check the last two digits of the constant in the barcode of new MDPS motor before replacing the motor.

Entering incorrect motor constant value may cause a serious problem in the MDPS.

Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
Remove the crash pad lower panel.
(Refer to CRASH PAD )
Loosen the screw and then remove the shower tilt (A).

Fig 1: Identifying Shower Tilt
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the steering column shroud lower panel (A).

Fig 2: Identifying Steering Column Shroud Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the MDPS ECU connector (A).

Fig 3: Identifying MDPS ECU Connector
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Disconnecting MDPS ECU Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect all connectors connected the steering column & EPS unit assembly.
Remove the steering column & EPS unit assembly by loosening the mounting bolt (A) and nuts (B).
Tightening torque :

Nut :12.7 - 17.7 N.m (1.3 - 1.8 kgf.m, 9.4 - 13.0 lb.ft)

Bolt :44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)

Fig 5: Identifying Steering Column & EPS Unit Assembly Nuts
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Identifying Steering Column & EPS Unit Assembly Bolts
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the driver"s seat when replacing the MDPS motor.
Be careful not to damage the MDPS motor & ECU.

If shock the motor, may occurs a noise caused by the bearing damage of motor inside.
Disconnect the MDPS ECU connector (A).

Fig 7: Identifying MDPS ECU Connector
Courtesy of FORD MOTOR CO.
Loosen the bolts (A) and then remove the MDPS ECU (B).

Fig 8: Identifying MDPS ECU and Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the MDPS motor bolts and then remove the MDPS motor.

Fig 9: Identifying MDPS Motor Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Perform the "Inputting the motor constant value" by GDS following in the order below.
1. Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.
2. Turn the self - diagnosis device after key is ON.
3. Select the "vehicle model" and "EPS system" on GDS vehicle selection screen.
4. Select the "Part exchange (Power steering Motor)".

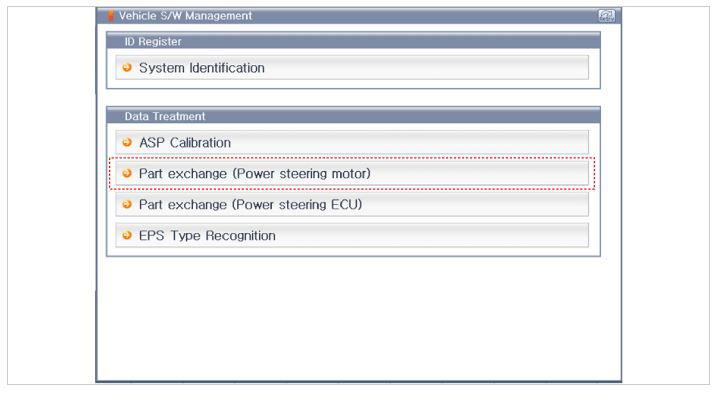

  Fig 10: Identifying Part Exchange (Power Steering Motor) Display Screen
  Courtesy of KIA MOTORS AMERICA, INC.
5. Follow the instructions shown on the screen.

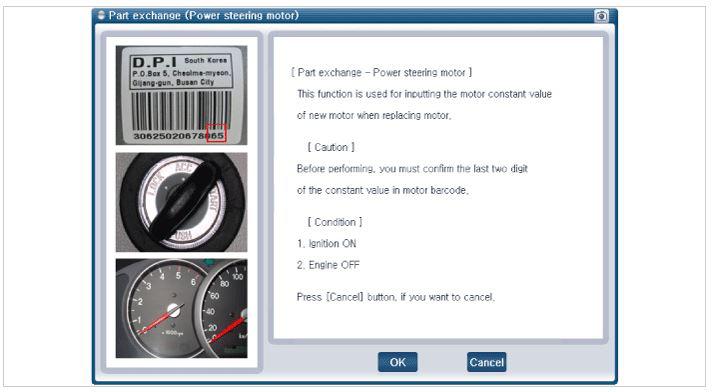

  Fig 11: Identifying Part Exchange (Power Steering Motor) Display Screen (1 of 3)
  Courtesy of KIA MOTORS AMERICA, INC.

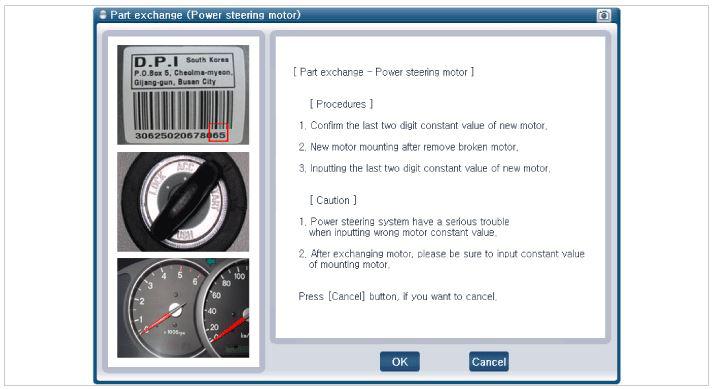

  Fig 12: Identifying Part Exchange (Power Steering Motor) Display Screen (2 of 3)
  Courtesy of KIA MOTORS AMERICA, INC.

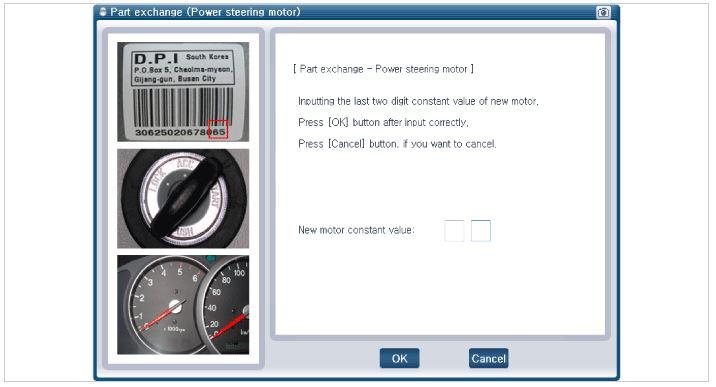

  Fig 13: Identifying Part Exchange (Power Steering Motor) Display Screen (3 of 3)
  Courtesy of KIA MOTORS AMERICA, INC.

  NOTE: Entering incorrect motor constant value may cause a serious problem in the MDPS.
6. Insert the VIN number and then select the "Write" in order to the ECU information save.

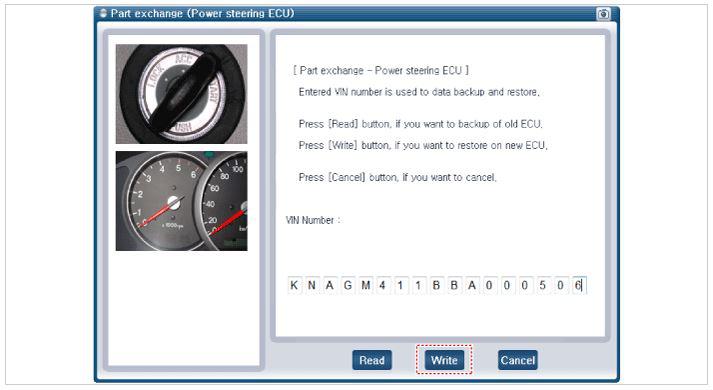

  Fig 14: Identifying Inserting VIN Display Screen
  Courtesy of KIA MOTORS AMERICA, INC.
Conduct the "ASP Calibration" by GDS.
(Refer to Diagnosis With GDS )
Turn off the IGN switch and wait for 10 seconds or more. Then check the operation after starting the engine.
