Home >> Kia >> 2015 >> Cadenza Limited >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System >> Timing Chain >> Components and Components Location >> Components

Components and Components Location: Components

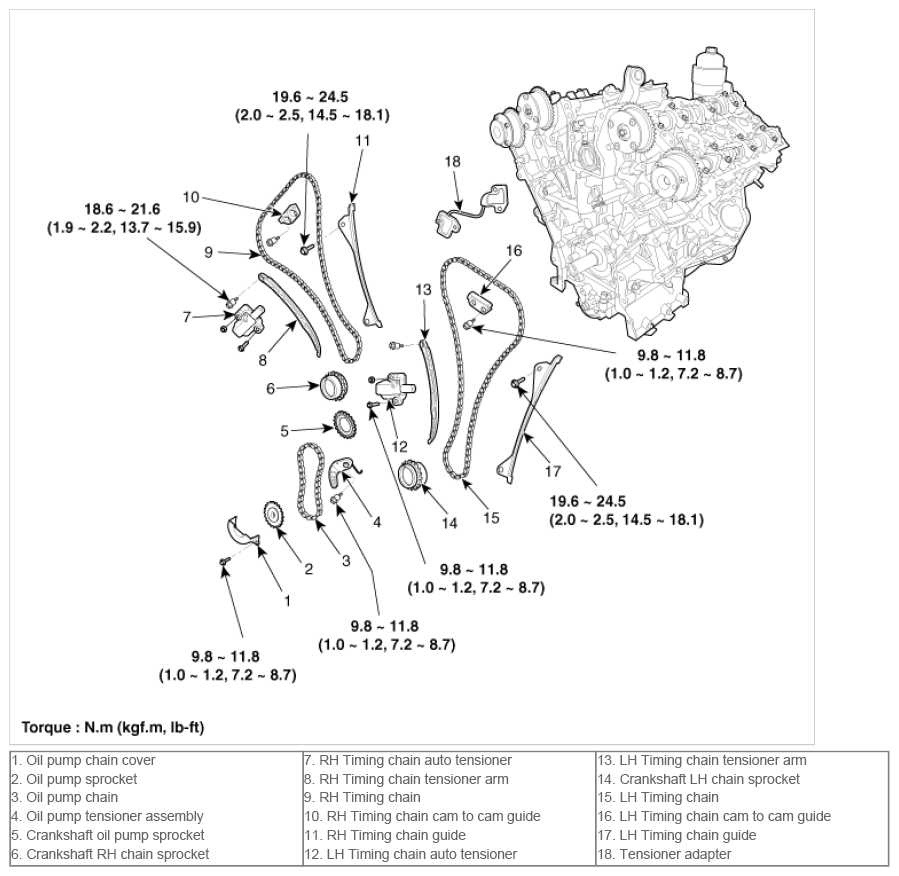

Fig 1: Timing Chain Replacement Components With Torque Specifications

G09750729

Courtesy of KIA MOTORS AMERICA, INC.
