Signal Waveform & Data

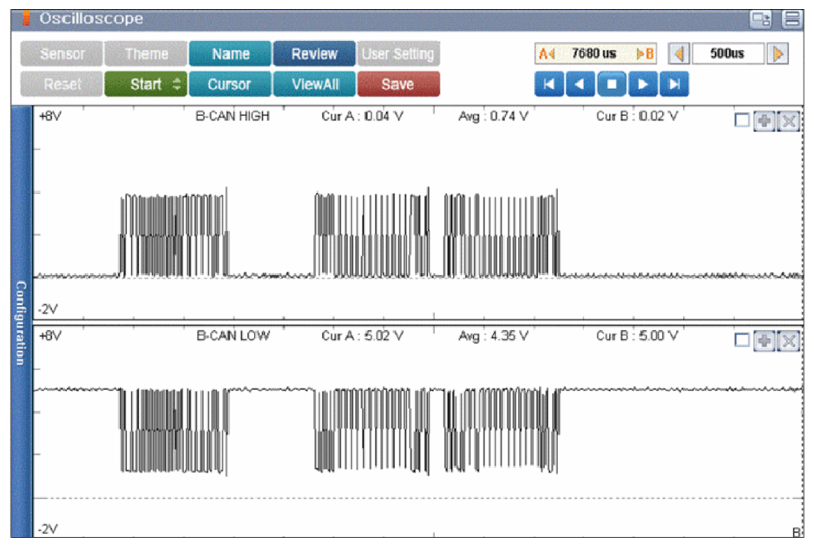

Fig 1: Display - CAN High/Low Signal Waveform Screen
G09754073Courtesy of KIA MOTORS AMERICA, INC.

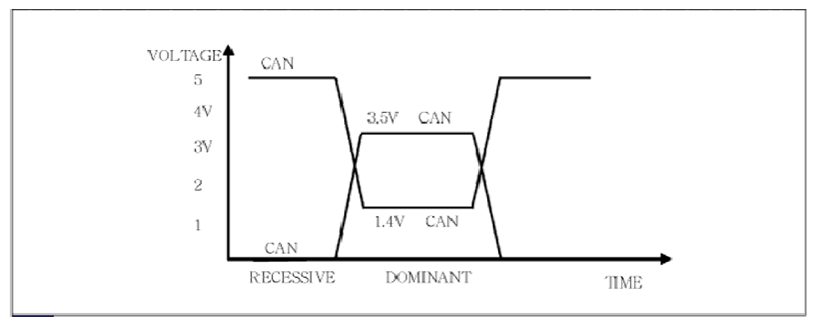

Fig 2: Display - CAN BUS Voltage Level (Low Speed CAN) Screen
G09754074Courtesy of KIA MOTORS AMERICA, INC.
