Mood Lamp Module Connector End View (M20)

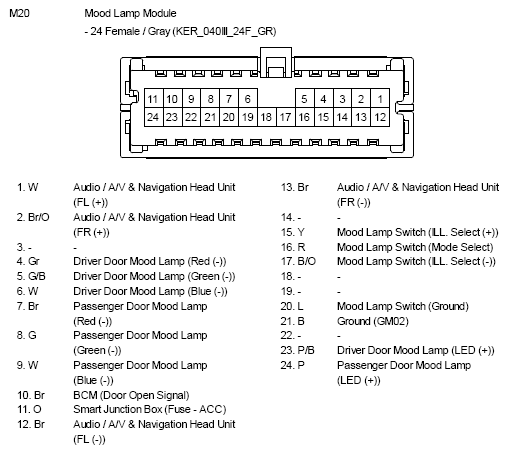

Fig 1: Mood Lamp Module Connector End View (M20)

G10792678

Courtesy of KIA MOTORS AMERICA, INC.
