[Register Sensor initialization]

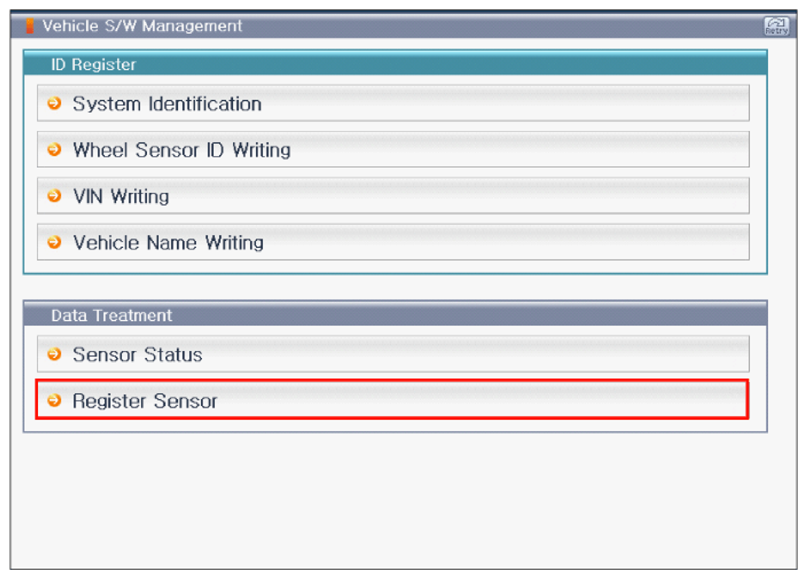

Fig 1: Display Register Sensor (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

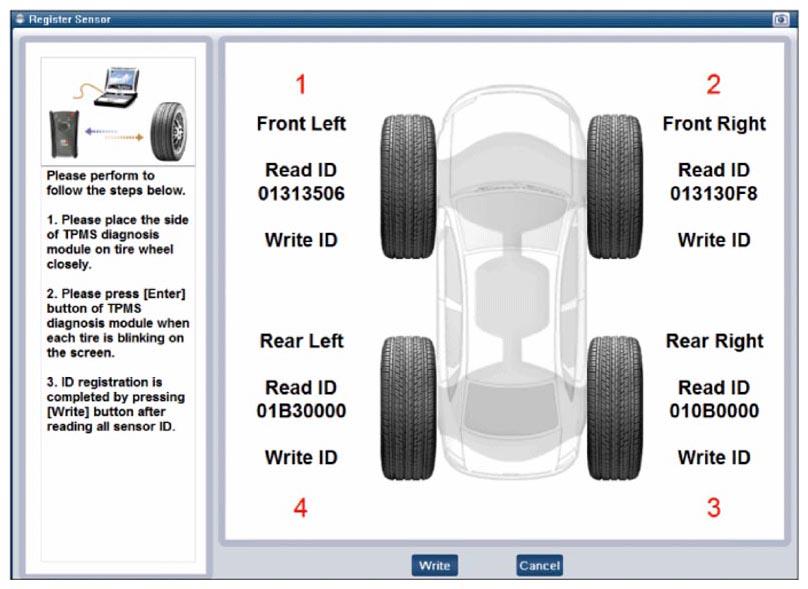

Fig 2: Display Register Sensor (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

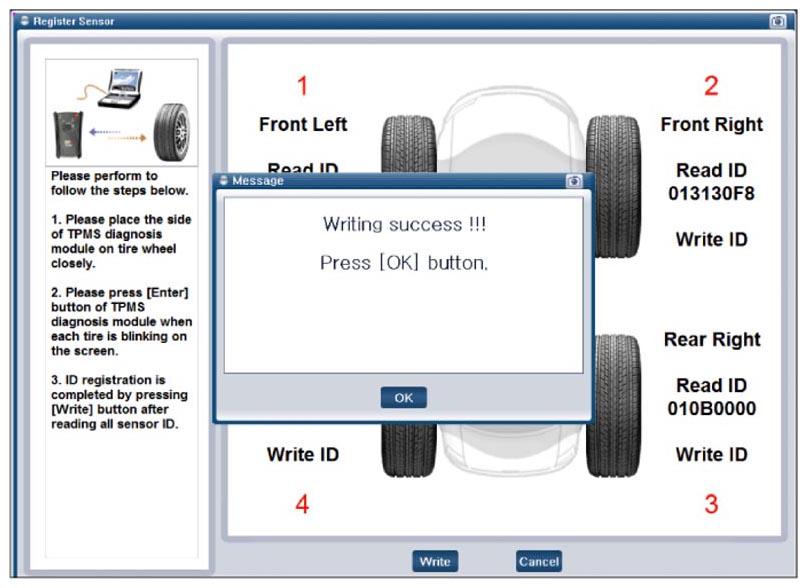

Fig 3: Display Register Sensor (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Write ID Read ID and be sure to check are the same.
After registering successfully sensor "Sensor Wireless Information" by the execution determines whether the sensor is working properly.
