Description And Operation: Description

Heated pads to grip the steering grip makes the fever.

1. Heated control unit
   Fig 1: Heated Control Unit

   Courtesy of KIA MOTORS AMERICA, INC.

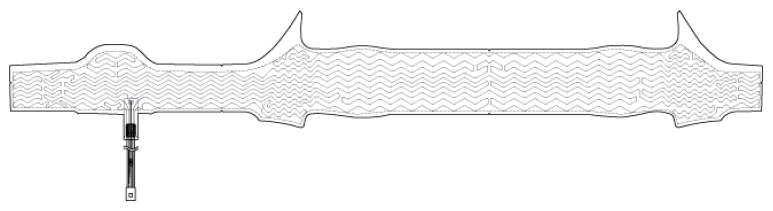

2. Heated pad
   Fig 2: Heated Pad

   Courtesy of KIA MOTORS AMERICA, INC.

   SPECIFICATIONS

   Item	Specification
   	standard	minimum	maximum
   Voltage	13.5 V	9 V	16 V
   Heated pad resistance	1.73Ω	1.56Ω	1.90Ω
   NTC resistance	10.0 kΩ	9kΩ	11kΩ
