Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

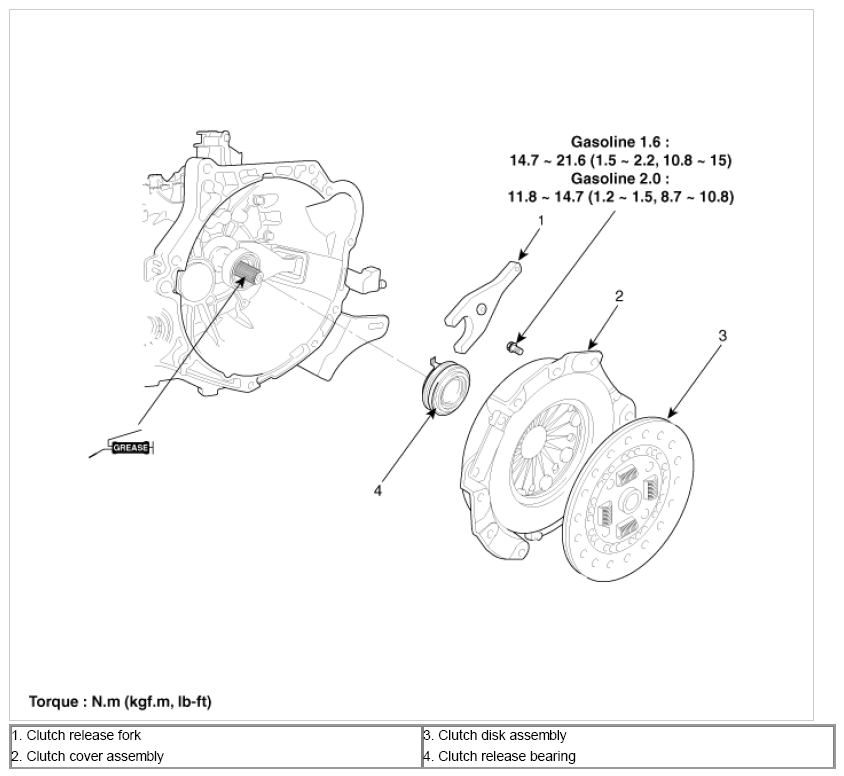

Fig 1: Clutch Cover And Disc Components With Torque Specifications
G09773127Courtesy of KIA MOTORS AMERICA, INC.
