Repair procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the cylinder head cover.
(Refer to "CYLINDER HEAD COVER ")
Set No. 1 cylinder to TDC (Top dead center) on compression stroke.
1. Turn the crankshaft pulley and align its groove with the timing mark of the timing chain cover.

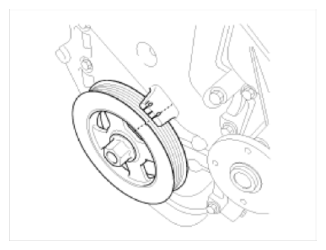

  Fig 1: Setting Crankshaft Pulley Top Dead Center
  Courtesy of KIA MOTORS AMERICA, INC.
2. Check that the TDC marks of the intake and exhaust CVVT sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft by one revolution (360°) more.

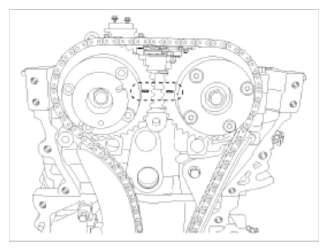

  Fig 2: Aligning TDC Marks Of Intake & Exhaust CVVT Sprockets
  Courtesy of KIA MOTORS AMERICA, INC.

  NOTE: Do not turn the crankshaft pulley counterclockwise.
Remove the timing chain cover.
(Refer to "TIMING CHAIN COVER ")
Remove the timing chain tensioner (A).

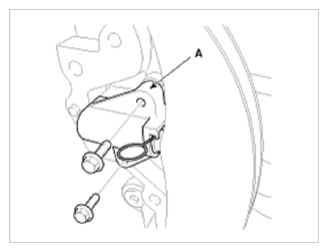

Fig 3: Timing Chain Tensioner
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Do not reuse the detached tensioner.
- If need to reuse the tensioner, remove the tensioner, make the piston (A) to protrude maximally, push the piston (A) to the end, and then mount the stopper pin.
  At this time, the tensioner fixing pin should be placed in the same way as when the product was first delivered from the factory.
Fig 4: Tensioner Plunger
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Pressing Plunger In
Courtesy of KIA MOTORS AMERICA, INC.

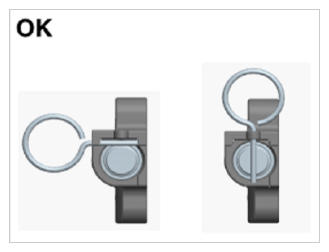

Fig 6: Proper Condition For Inserting Stopper Pin Into Hole
Courtesy of KIA MOTORS AMERICA, INC.

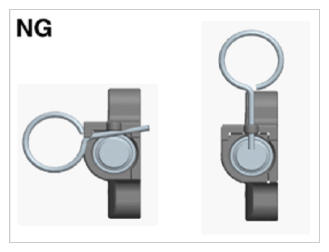

Fig 7: Improper Condition For Inserting Stopper Pin Into Hole
Courtesy of KIA MOTORS AMERICA, INC.
Remove the timing chain tensioner arm (A).

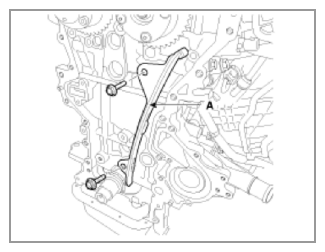

Fig 8: Removing Timing Chain Tensioner Arm
Courtesy of KIA MOTORS AMERICA, INC.
Remove the timing chain (A).

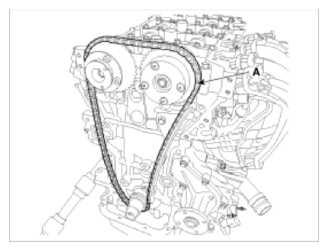

Fig 9: Removing Timing Chain
Courtesy of KIA MOTORS AMERICA, INC.
Remove the timing chain guide (A).

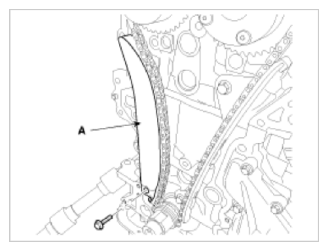

Fig 10: Removing Timing Chain Guide
Courtesy of KIA MOTORS AMERICA, INC.
