Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

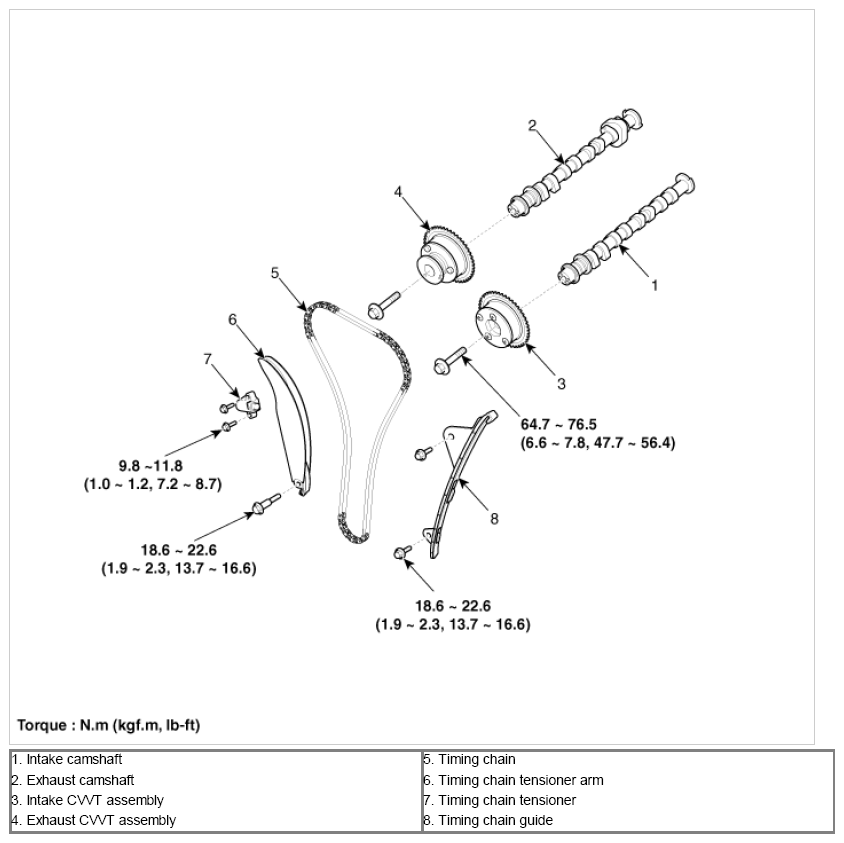

Fig 1: Timing Chain Components With Torque Specification
G09779043Courtesy of KIA MOTORS AMERICA, INC.
