Repair procedures: Removal

  1. Remove the fuel pump. (Refer to "FUEL PUMP ")

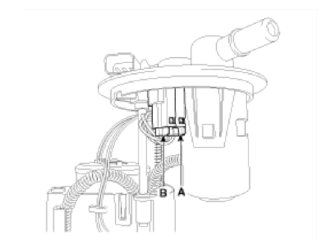

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    Fig 1: Identifying Electric Pump Wiring And Fuel Sender Connector
    G09773079Courtesy of KIA MOTORS AMERICA, INC.

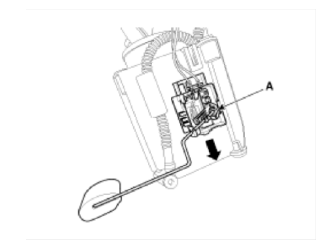

  3. Remove the fuel sender (A) in the direction of an arrow.
    Fig 2: Removing Fuel Sender
    G09773080Courtesy of KIA MOTORS AMERICA, INC.
