Components And Components Location: Components

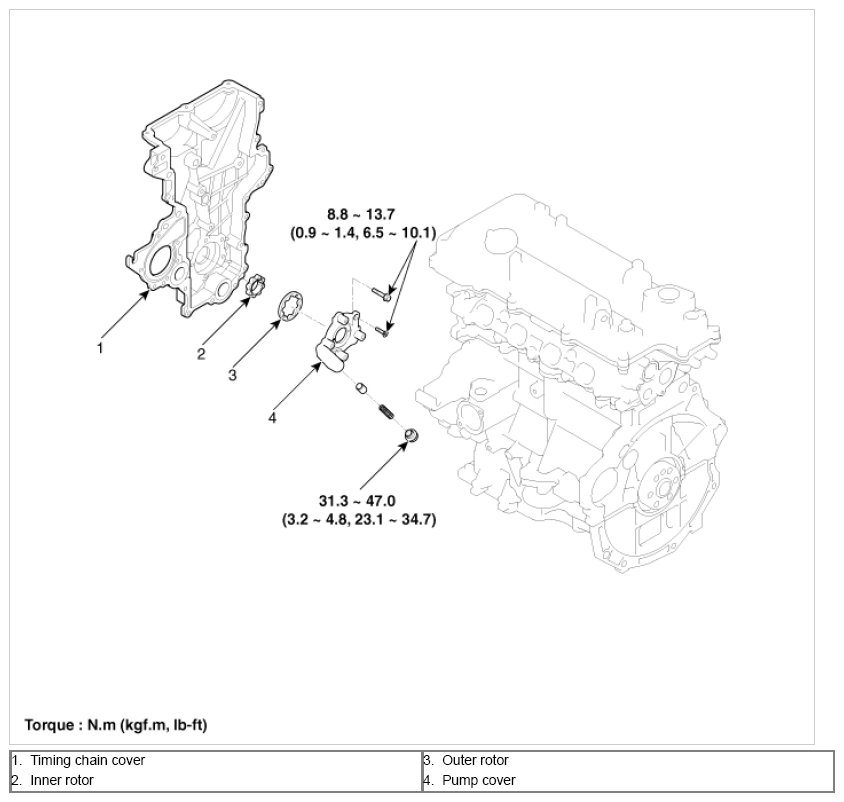

Fig 1: Oil Pump Components With Torque Specifications

G09777634

Courtesy of KIA MOTORS AMERICA, INC.
