Components And Components Location: Components

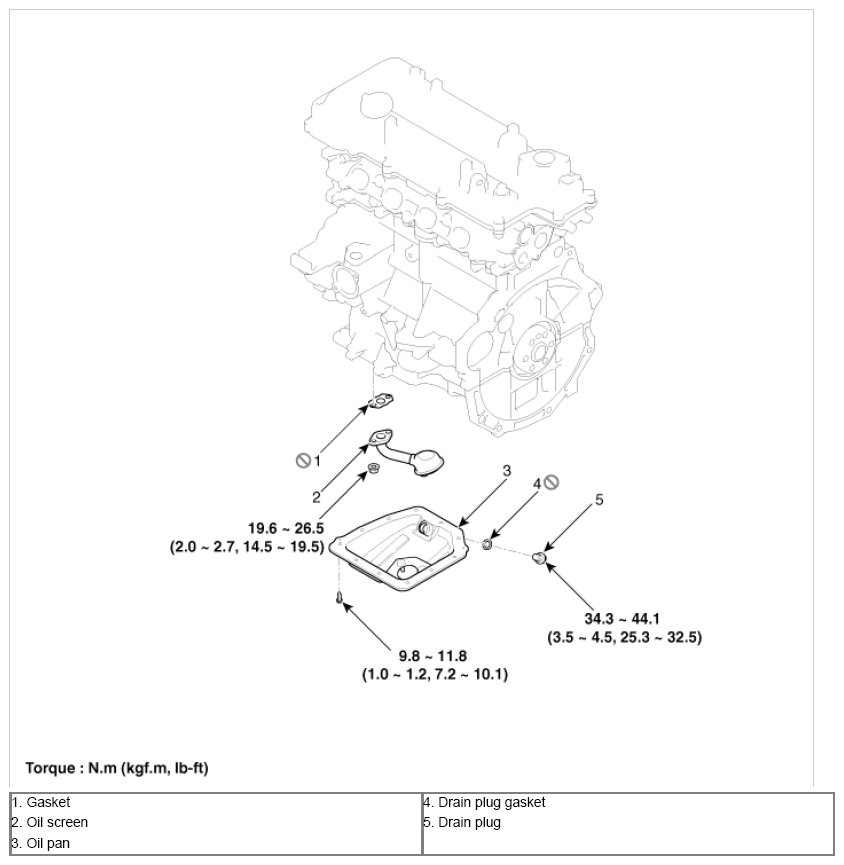

Fig 1: Oil Pan Components With Torque Specifications

G09777641

Courtesy of KIA MOTORS AMERICA, INC.
