Components and Components Location: Components

[LH]

Fig 1: Exploded View Of TJ Joint (LH)
G09777808Courtesy of KIA MOTORS AMERICA, INC.

[RH]

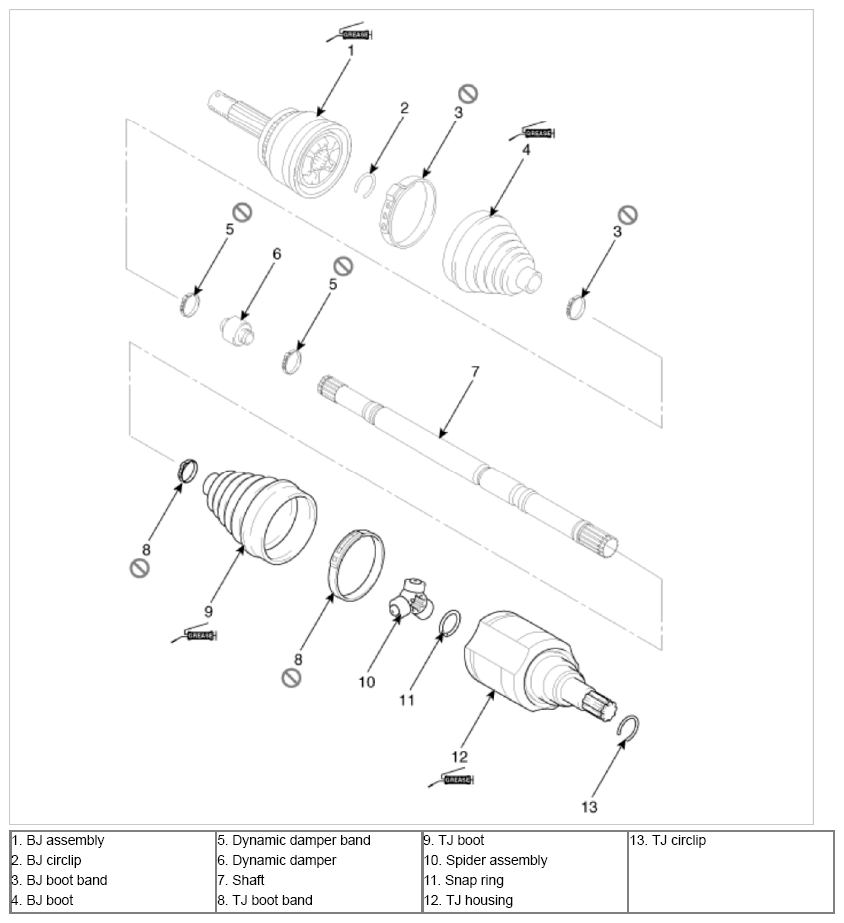

Fig 2: Exploded View Of TJ Joint (RH)
G09777809Courtesy of KIA MOTORS AMERICA, INC.
