Repair procedures: Replacement

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Fig 1: Wheel & Tire
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Remove the driveshaft coking nut (A).
Tightening torque:

240.3 ~ 269.7 N.m (24.5 ~ 27.5 kgf.m, 177.2 ~ 198.9 lb-ft)

Fig 2: Driveshaft Coking Nut
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- The driveshaft lock nut should be replaced with new ones.
- After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration .

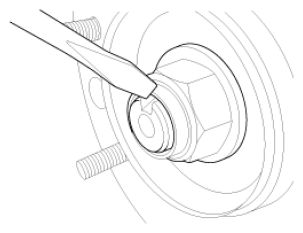

Fig 3: Installing Driveshaft Lock Nut Using Chisel And Hammer
Courtesy of KIA MOTORS AMERICA, INC.
Remove the tie rod end ball joint (C) from the knuckle by using the SST (09568-34000).
1. Remove the split pin (A).
2. Remove the castle nut (B).
3. Use the SST (09568-34000).
  Tightening torque:

  23.5 ~ 33.3N.m (2.4 ~ 3.4kgf.m, 19.4 ~ 24.6lb-ft)

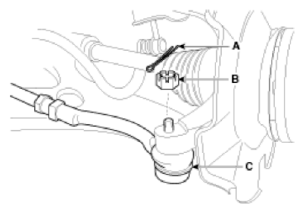

  Fig 4: Split Pin, Castle Nut & Tie Rod End Ball Joint
  Courtesy of KIA MOTORS AMERICA, INC.

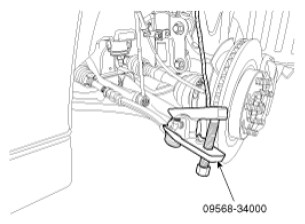

  Fig 5: Removing Tie Rod End Ball Joint Using SST
  Courtesy of KIA MOTORS AMERICA, INC.
  CAUTION:
  - When using SST, be sure not to damage the dust cover of lower arm ball joint.
  - Keep SST tied to the car because there is a risk of injury by dropping the SST during removing the lower arm ball joint.
  - The peripheral parts may be damaged when removing the lower arm ball joint with a general tool such as lever, so be sure to use SST.
Remove the lower arm (A) from the knuckle.
Tightening torque:

58.8 ~ 70.6 N.m (6.0 ~ 7.2 kgf.m, 43.4 ~ 52.1 lb-ft)

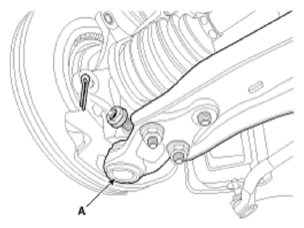

Fig 6: Lower Arm
Courtesy of KIA MOTORS AMERICA, INC.
Using a plastic hammer, disconnect driveshaft (A) from the axle hub (B).

Fig 7: Driveshaft And Axle Hub
Courtesy of KIA MOTORS AMERICA, INC.
Insert a pry bar (A) between the transaxle case and joint case, and separate the drive shaft (B) from the transaxle case.

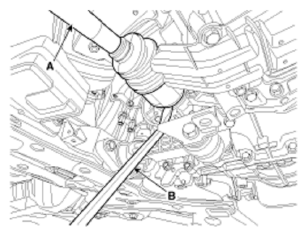

Fig 8: Pry Bar And Drive Shaft
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the front alignment.
(Refer to ALIGNMENT ).
