Components and Components Location: Components

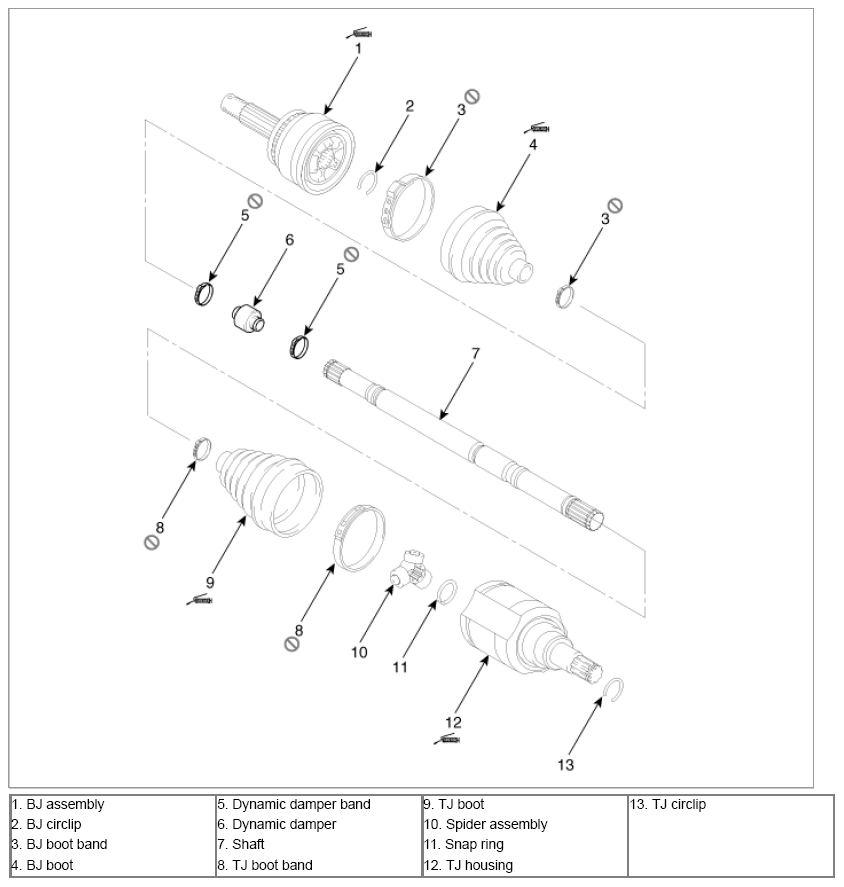

Fig 1: Exploded View Of Driveshaft Assembly

G09777822

Courtesy of KIA MOTORS AMERICA, INC.
