Home >> Kia >> 2014 >> Soul Base, Automatic Trans >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views (Main Harness) -- Soul 1.6L >> Connector End Views >> SRS Control Module Connector End View (M42)

SRS Control Module Connector End View (M42)

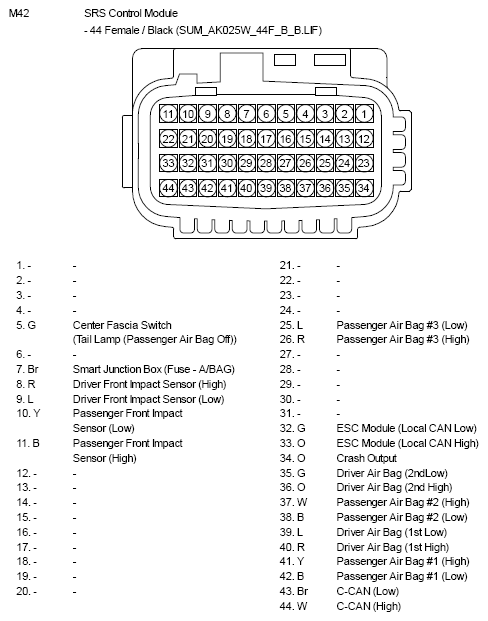

Fig 1: SRS Control Module Connector End View (M42)

G10792704

Courtesy of KIA MOTORS AMERICA, INC.
