Passenger Weight Classification Sensor Connector End View (F39)

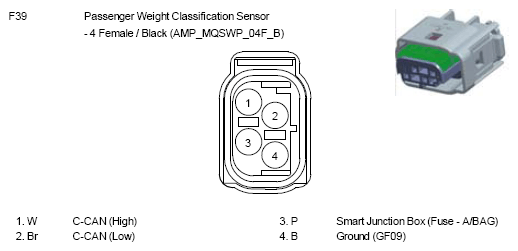

Fig 1: Passenger Weight Classification Sensor Connector End View (F39)

G10792834

Courtesy of KIA MOTORS AMERICA, INC.
