Component Inspection: Notes

Perform Injector Actuation Test
1. Connect GDS to Data Link Connector (DLC).
2. IG KEY "ON" & ENG "OFF".
3. Perform "Actuation Test" for Injector.

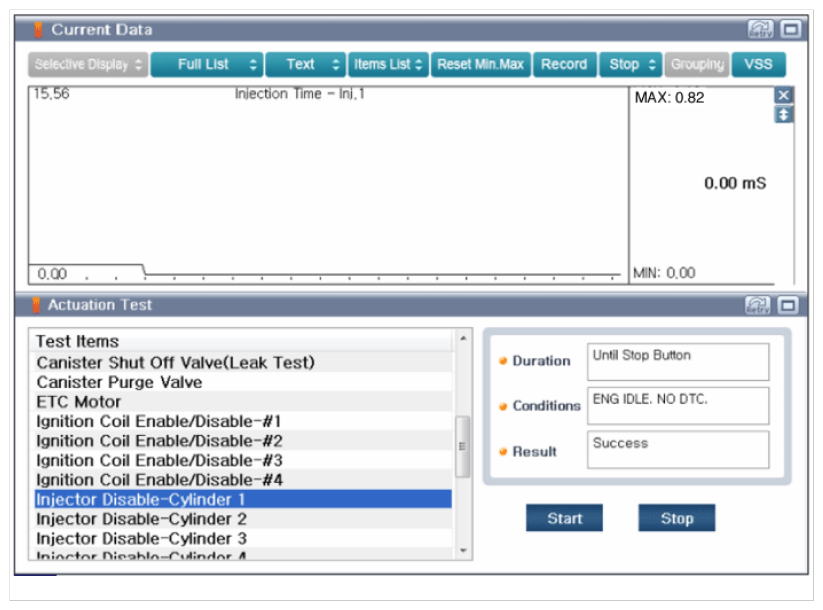

  Fig 1: Injector Disable - Cylinder 1 Actuation Test Screen
  Courtesy of KIA MOTORS AMERICA, INC.
Check Injector performance
1. IG KEY "OFF".
2. Connect VMI to GDS and select "Oscilloscope".
3. Connect Channel A positive probe to Pin No. 2 (High side) and Channel A negative probe to Pin No. 1 (Low side).
4. Connect CH AUX probe to control wire of Injector.
5. Warm up the engine to normal operating temperature.
  Specification: Refer to SIGNAL WAVEFORM & DATA

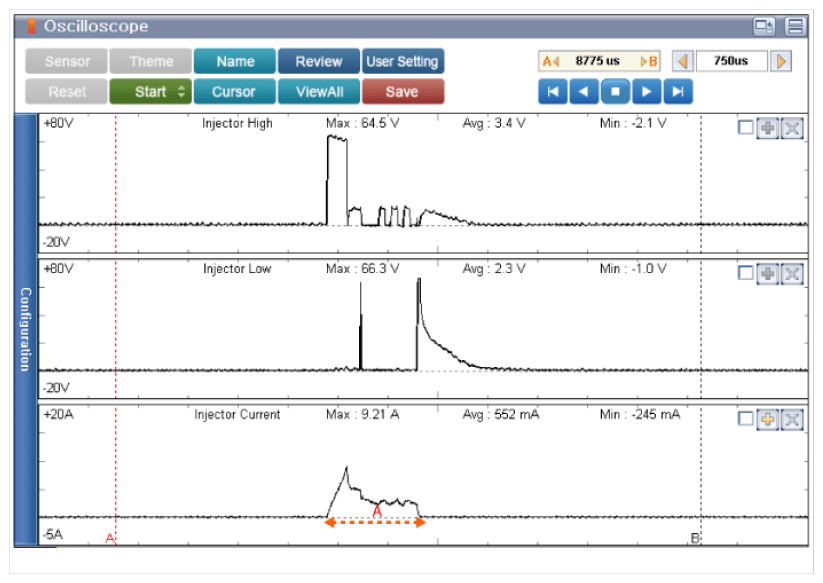

  Fig 2: Fuel Injector Waveforms - Engine Idle After Warm Up
  Courtesy of KIA MOTORS AMERICA, INC.

  A: Fuel injection time - Approx. 1450us

  CH. A - Injector Max 64.5V

  CH. AUX - Injector Current MAX 9.21A

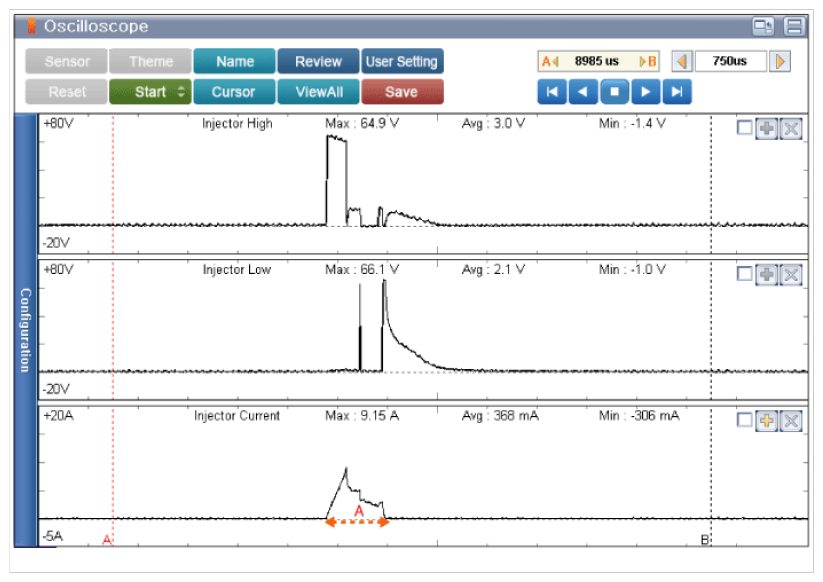

  Fig 3: Fuel Injector Waveforms - 2500 RPM
  Courtesy of KIA MOTORS AMERICA, INC.

  A: Fuel injection time - Approx. 900us

  CH. A - Injector Max 64.9V

  CH. AUX - Injector Current MAX 9.15A

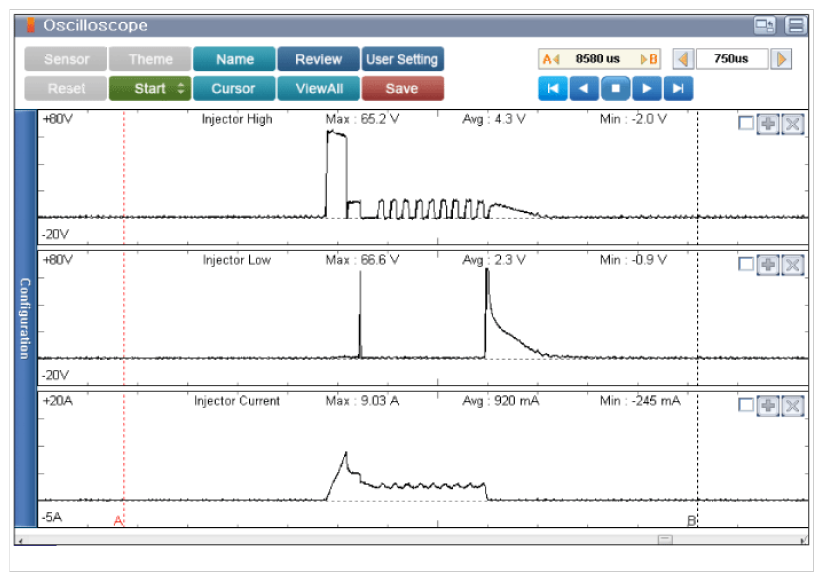

  Fig 4: Fuel Injector Waveforms - Acceleration
  Courtesy of KIA MOTORS AMERICA, INC.

  CH. A - Injector Max 65.2V

  CH. AUX - Injector Current MAX 9.09A
Check Injector performance
1. IG Key "OFF".
2. Disconnect Injector connector.
3. Measure resistance between Pin No. 2 (High side) terminal and Pin No. 1 (Low side) terminal of the Injector. (Component Side)

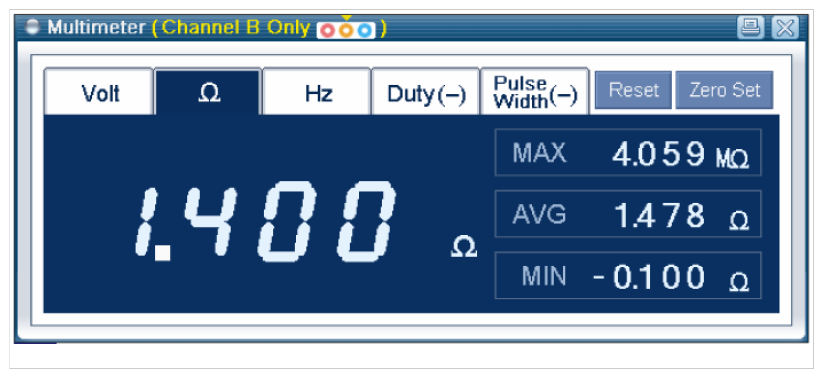

Fig 5: Resistance Of Injector
Courtesy of KIA MOTORS AMERICA, INC.
Confirm Part Inspection
1. Does the Injector operate properly? (Check variation)
  YES
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Carefully re-do this troubleshooting guide steps.
  - If problem still occurs, replace Injector and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
