Signal Waveform & Data

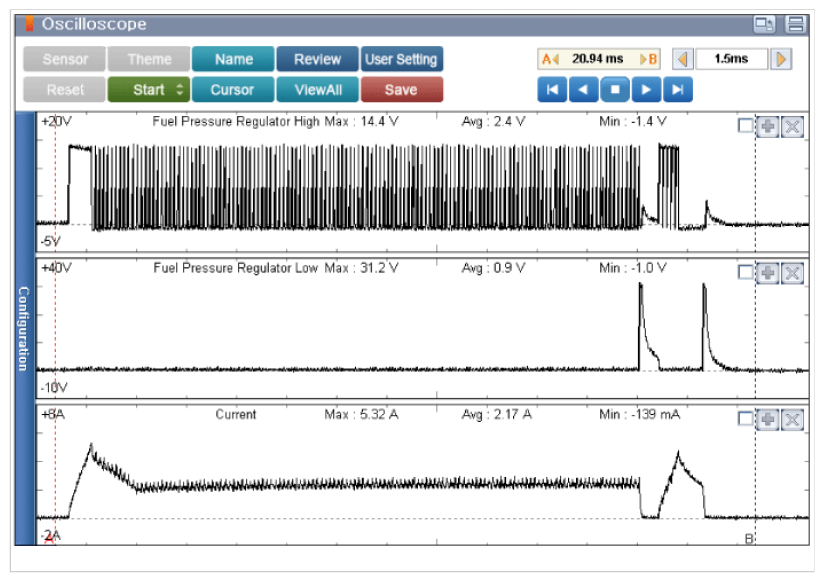

Fig 1: Fuel Pressure Regulator Waveforms - Idle
G09776283Courtesy of KIA MOTORS AMERICA, INC.

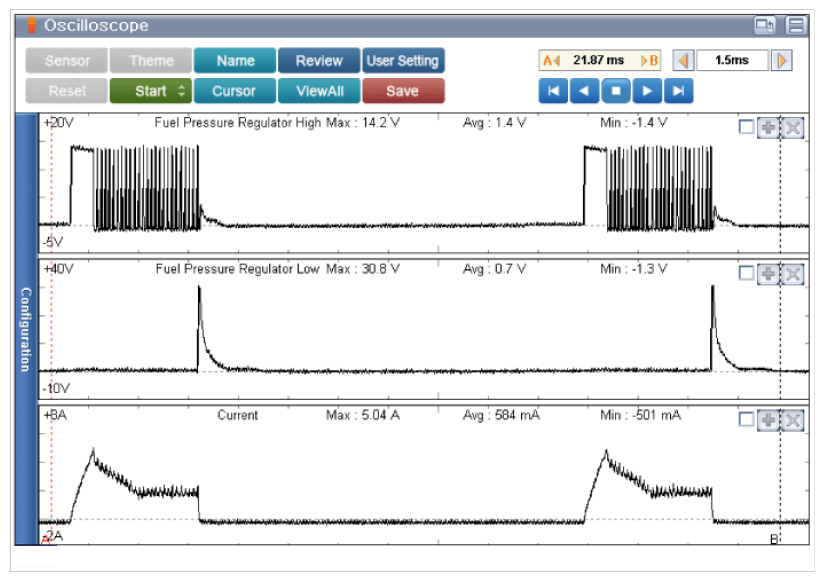

Fig 2: Fuel Pressure Regulator Waveforms - 2000 RPM
G09776284Courtesy of KIA MOTORS AMERICA, INC.

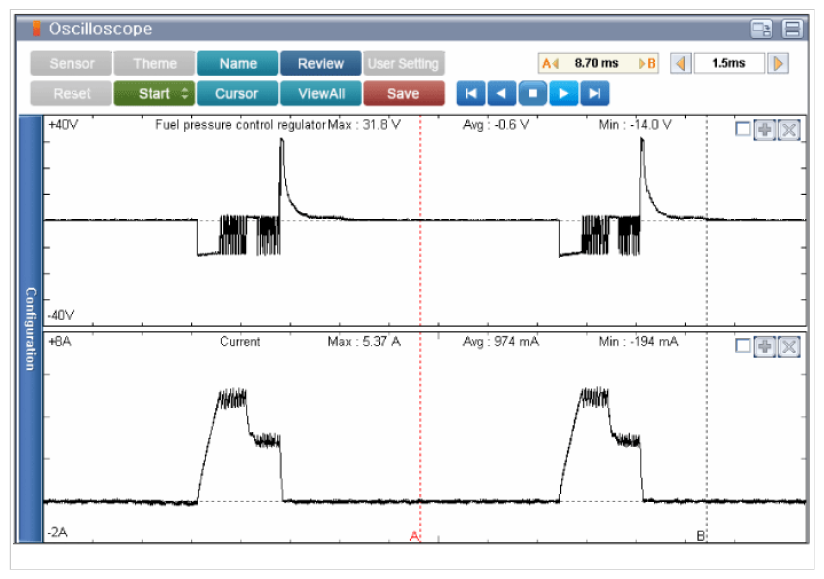

Fig 3: Fuel Pressure Regulator Waveforms - 3000 RPM
G09776285Courtesy of KIA MOTORS AMERICA, INC.
