Engine Control System Diagnosis (1 Of 2) - 1.6L
>>
DTC P0087: Fuel Rail/System Pressure - Too Low
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

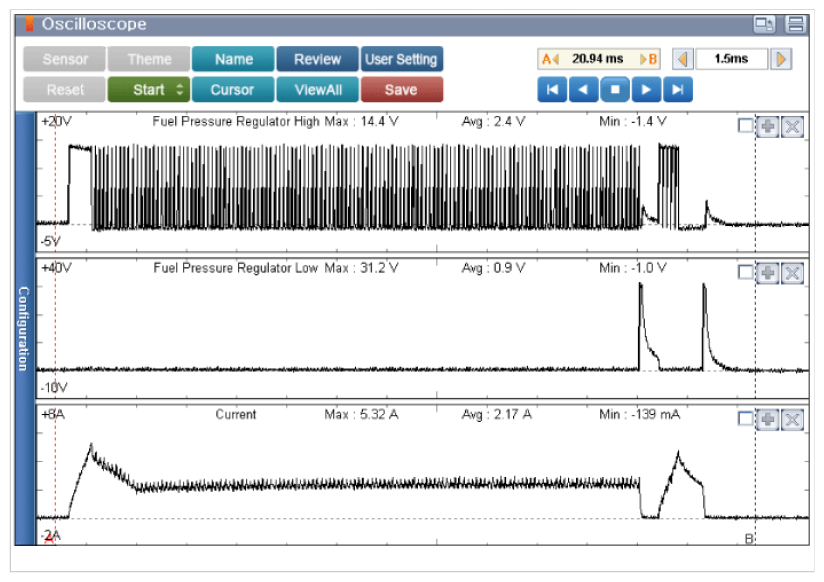

Fig 1: Fuel Pressure Regulator Waveforms - Idle
Courtesy of KIA MOTORS AMERICA, INC.

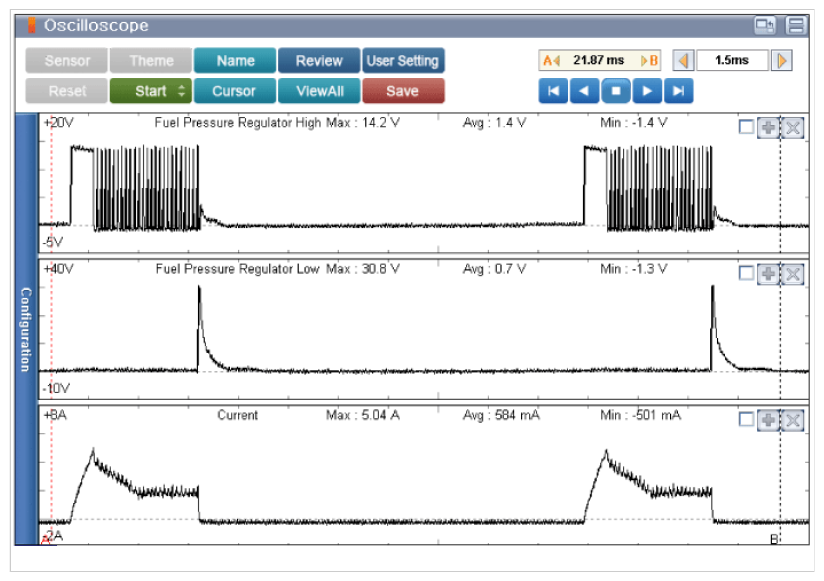

Fig 2: Fuel Pressure Regulator Waveforms - 2000 RPM
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
