Special Service Tools

Tool Name/Number	Illustration	Description
Engine support fixture (bar) 09200-3N000	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing transaxle Used with the adapter (09200-4X000) and supporter (09200-2S000)
Engine support fixture (supporter) 09200-2S000 09200-2S100 09200-2S200	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and adapter (09200-4X000)
Engine support fixture (adapter) 09200-4X000	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and supporter (09200-2S000)
Oil seal installer 09453-3L241 (Installer) 09231-H1100 (Handle)	Courtesy of KIA MOTORS AMERICA, INC.	-
Inhibitor switch guide pin 09480-A3800	Courtesy of KIA MOTORS AMERICA, INC.	-

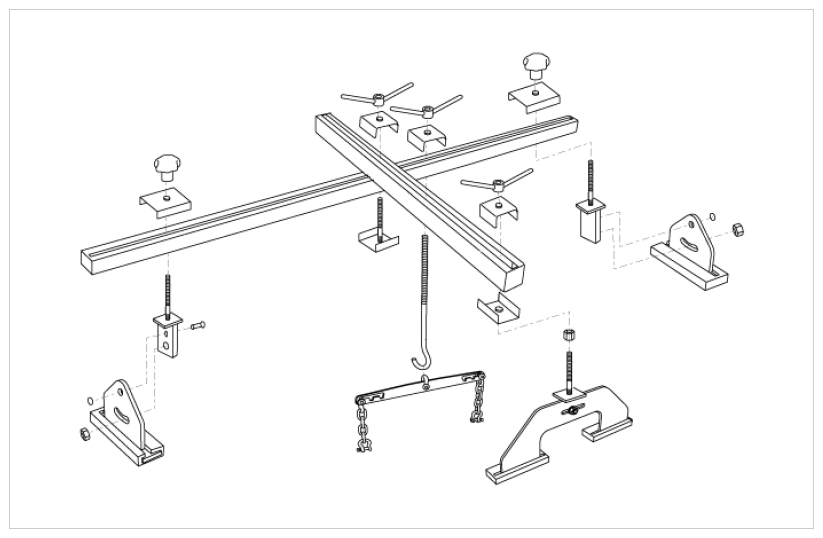

* Engine support fixture special tool assembly drawing

Fig 1: Engine Support Fixture Special Tool Assembly Drawing

Courtesy of KIA MOTORS AMERICA, INC.
