Repair procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver airbag module.

    (Refer to REMOVAL )

  3. Remove the steering wheel.

    (Refer to "STEERING WHEEL ")

  4. Loosen the mounting screws from the rear steering wheel cover.

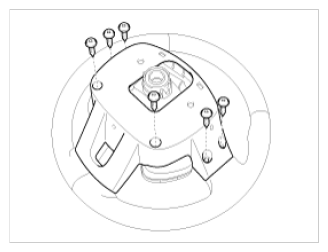

    Fig 1: Rear Steering Wheel Cover Mounting Screws
    G09777654Courtesy of KIA MOTORS AMERICA, INC.
  5. Separate the upper steering wheel remote control switch (A) from the steering wheel.

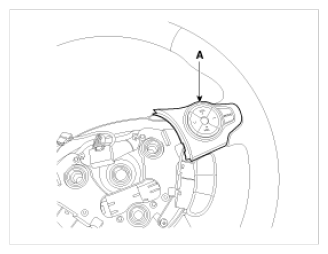

    Fig 2: Upper Steering Wheel Remote Control Switch
    G09777655Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the upper steering wheel control switch (B) disconnecting the connector (A).

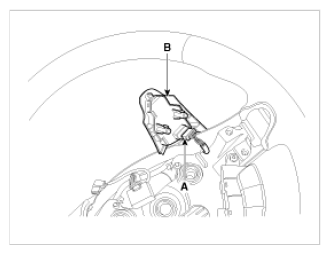

    Fig 3: Upper Steering Wheel Control Switch & Connector
    G09777656Courtesy of KIA MOTORS AMERICA, INC.
