Component Inspection

Perform Fuel Pump Relay Actuation Test
1. Connect GDS to Data Link Connector (DLC).
2. IG KEY "ON" & ENG "OFF".
3. Perform "Actuation Test" for Fuel Pump.

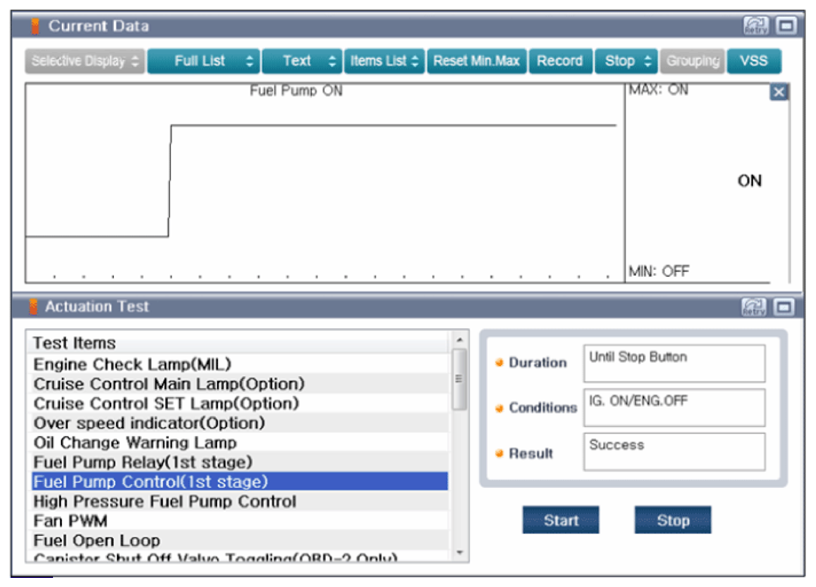

  Fig 1: Display - Fuel Pump Control Actuation Test Screen
  Courtesy of KIA MOTORS AMERICA, INC.

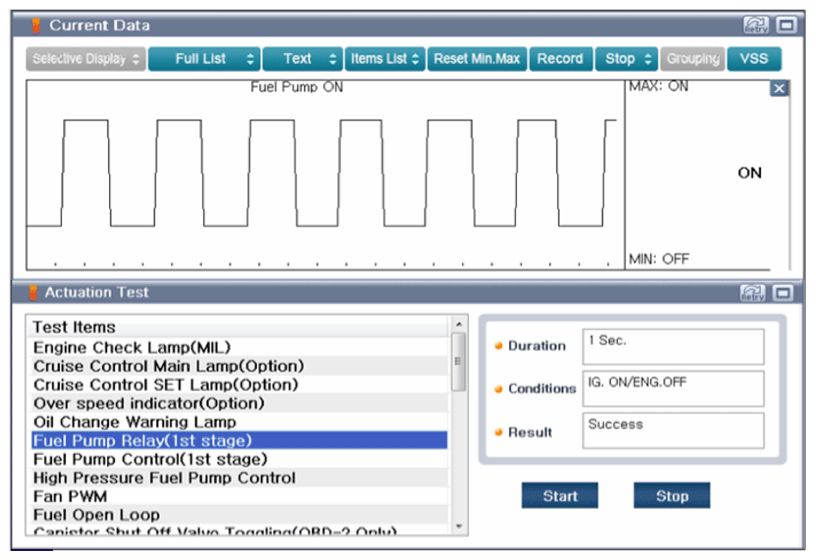

  Fig 2: Display - Fuel Pump Relay Actuation Test Screen
  Courtesy of KIA MOTORS AMERICA, INC.
Confirm Part Inspection
1. Does the Fuel Pump operate properly? (Check variation)
  YES
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known-good Fuel Pump Relay and check for proper operation. If the problem is corrected, replace Fuel Pump Relay and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
