Repair procedures: Removal

  1. Remove the fuel pump. (Refer to "FUEL PUMP ")
  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

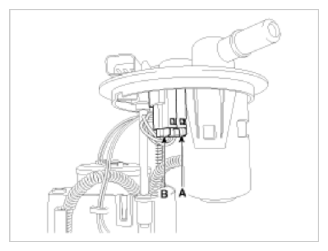

    Fig 1: Identifying Electric Pump Wiring And Fuel Sender Connectors
    G09779423Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the fuel sender (A) in the direction of an arrow.

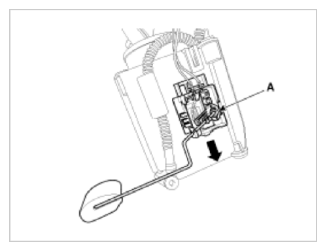

    Fig 2: Removing Fuel Sender
    G09779424Courtesy of KIA MOTORS AMERICA, INC.
