Repair procedures: Removal

  1. Open the fuel filler door and unfasten the filler-neck assembly mounting bolts (A).

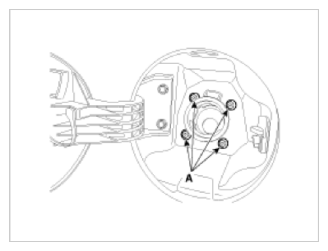

    Fig 1: Identifying Filler-Neck Assembly Mounting Bolts
    G09779450Courtesy of KIA MOTORS AMERICA, INC.
  2. Lift the vehicle
  3. Remove the left rear wheel & tire and the wheel guard (A).

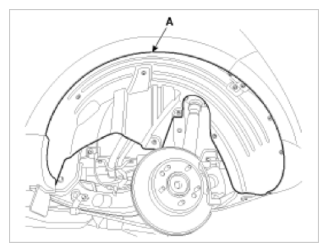

    Fig 2: Identifying Wheel Guard
    G09779451Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel filter hose (A) and the ventilation hose (B).
  5. Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolt (C).

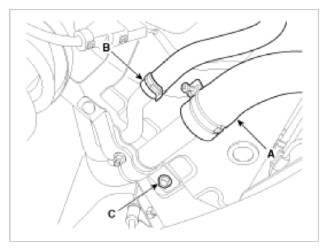

    Fig 3: Identifying Fuel Filter Hose, Ventilation Hose And Bracket Mounting Bolt
    G09779452Courtesy of KIA MOTORS AMERICA, INC.
