Repair procedures: Inspection

  1. Remove the crash pad side switch assembly (A) from the switch panel on the crash pad of the driver's side.

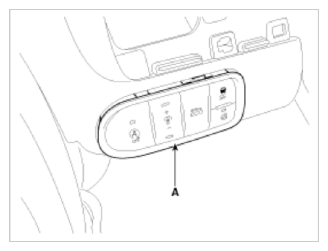

    Fig 1: Identifying Crash Pad Side Switch Assembly
    G09779363Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the ISG switch from the switch assembly.
  3. Check the continuity between the switch 3 and 5 terminals as the ISG OFF switch is engaged.

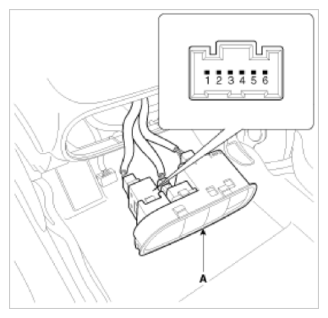

    Fig 2: Identifying Crash Pad Side Switch Connector Terminals
    G09779364Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Crash Pad Side Switch Connector Terminal Continuity Chart
    G09779365Courtesy of KIA MOTORS AMERICA, INC.
