Repair procedures: Inspection

  1. Remove the door switch and check for continuity between the terminals.

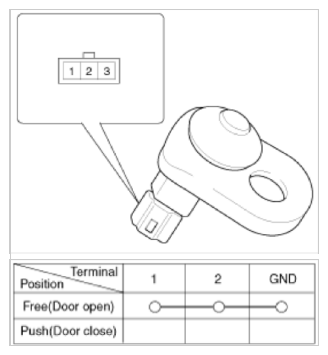

    Fig 1: Identifying Door Switch Connector Terminals
    G09779388Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Door Switch Connector Terminal Continuity Chart
    G09779389Courtesy of KIA MOTORS AMERICA, INC.
