Repair procedures: Removal

  1. Disconnect the battery negative (-) cable.
  2. Remove the crash pad lower panel.

    (Refer to CRASH PAD LOWER PANEL .)

  3. Disconnect the DC/DC converter connector (A).

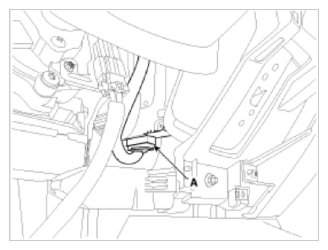

    Fig 1: Identifying DC/DC Converter Connector
    G09779361Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the DC/DC converter (A).

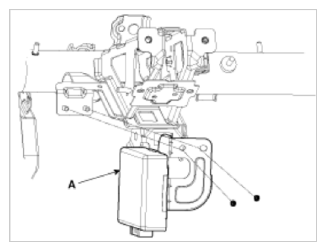

    Fig 2: Identifying DC/DC Converter
    G09779362Courtesy of KIA MOTORS AMERICA, INC.
